Sick Diffuse reflection light scanner WTB12-3P2441

Ratings
BrandMore from Sick
Delivered between Tue, 16.6. and Tue, 30.6.
free shipping

Product details

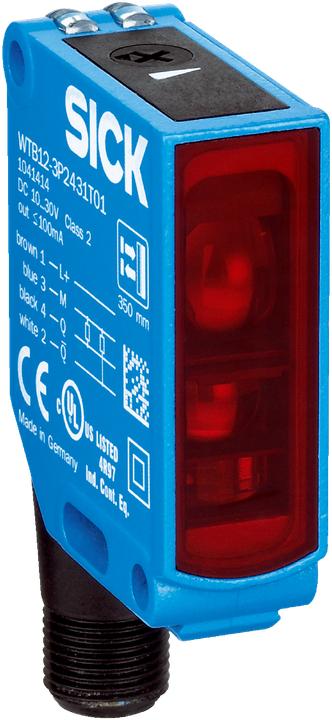

Sick diffuse reflection light scanner WTB12-3P2441
Manufacturer: Sick
Designation: Diffuse reflection light scanner
Type: WTB12-3P2441
Adjustment range: 35 to 100 mm
Scanning range: 35 to 100 mm
Rated switching distance: 100 mm
Max. switching distance: 100 mm
Switching distance: 175 mm
Max. output current: 100 mA
Setting method: Manual setting
Version of the interface for safety-related communication: Other
Version of the electrical connection: Plug connector M12
Version of the switching output: PNP
Version of the switching function: Antivalent
Equipment protection class: Protection class 3
Housing design: Cuboid
Width of sensor: 15.6 mm
Height of sensor: 48.5 mm
Length of sensor: 42 mm
Sensing function: Light/dark switching
Material of optical surface: Plastic
Material of housing: Metal
Max. output current at safe output: 100 mA
Ambient temperature: 60 °C
Response time: 0.33 ms
Switching frequency: 1500 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10 to 30 V
Voltage type: DC
Wavelength of sensor: 660 nm
Light type: Red light polarised
Protection class (IP): IP66

Sick WTB12-3P2441 diffuse reflection light scanners: further details
Small photoelectric sensors, W12, WTB12-3P2441, Device type: Photoelectric proximity switches and photoelectric sensors, Max. switching distance: 30 mm to 175 mm, Sensor type: Diffuse reflection light scanner, Detection principle: Background suppression, Switching output: PNP, Switching type: Light/dark switching, Connection type: M12 plug, 4-pin, Light emitter: LED, Light type: Visible red light, Setting: Potentiometer, Included in delivery: 2 x BEF-KH-W12 clamp mount, including screws.
EAN: 4047084171321.

30-day right of return
24 Months Warranty (Bring-in)
