Sick Diffuse reflection light scanner

Sick diffuse reflection light scanner WTB4SL-3P5262H
Manufacturer: Sick
Designation: Diffuse reflection light scanner
Type: WTB4SL-3P5262H

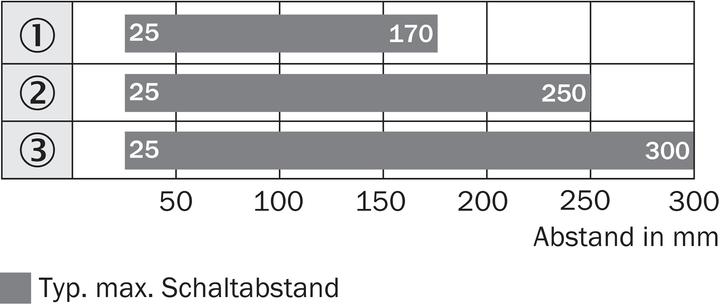

Scanning range: 25 to 300 mm
Rated switching distance: 300 mm
Max. switching distance: 300 mm
Max. output current: 30 mA
Adjustment method: Teach-In
Version of the interface for safety-related communication: Other
Version of the electrical connection: M8 plug connector
Version of the switching output: PNP
Version of the switching function: Antivalent
Equipment protection class: Protection class 3
Housing design: Cuboid

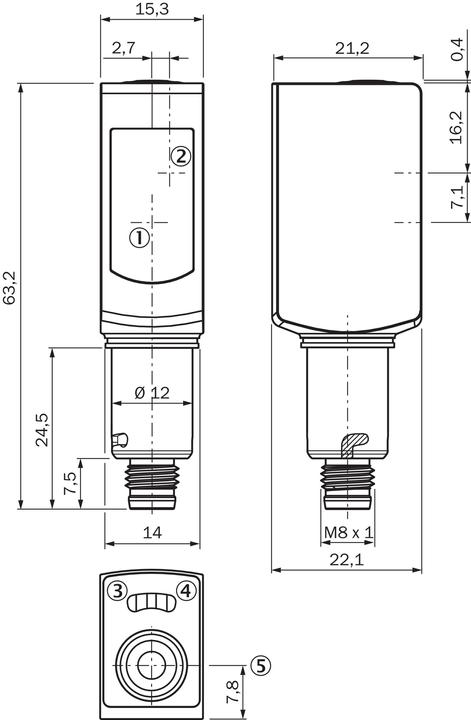

Width of sensor: 15.3 mm
Height of sensor: 63.2 mm
Length of sensor: 22.2 mm
Sensing function: Light/dark switching
Material of optical surface: Plastic
Material of housing: Other
Max. output current at safe output: 100 mA
Ambient temperature: 50 °C
Response time: 0.5 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Voltage type: DC
Laser protection class: Class 1
Wavelength of sensor: 650 nm
Light type: Red light polarized
Protection class (IP): IP66

Sick WTB4SL-3P5262H diffuse reflection light scanners: further details
Miniature photoelectric sensors, W4SL-3H, WTB4SL-3P5262H, Switching distance max. 25 mm to 300 mm, Sensor principle: Diffuse reflection light scanner, Detection principle: Background suppression, Switching output: PNP, Switching type: Light/dark switching, Connection type: Plug M8, 4-pin, Light emitter: Laser, Setting: Teach-in button, Laser class: 1.
