Schulte Lagertechnik Support frame

Support frame with a depth of 800 mm and a height of 3000 mm. Individual components are available to meet specific requirements. Static calculations are carried out according to the DIN standard EN 15512, ensuring long-term planning reliability through standard frames. The dismountable support frames facilitate transport and can be easily adapted to spatial conditions, allowing for changes to be made at any time. The frames are particularly stable due to the truss beams and offer high longitudinal and torsional stiffness through cold-formed rectangular tubes with welded brackets.

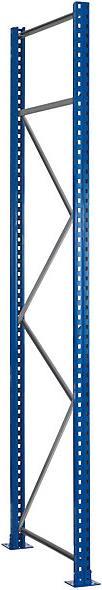

The frame consists of 2 vertical profiles with blue painted base plates (145 x 155 x 6 mm), truss beams, and mounting materials. The width of the standing profile is 86 mm. The frame is powder-coated in blue, similar to RAL 5010, and galvanized. It includes 4 ground anchors. The shelf height corresponds to the frame height, and the total height is the frame height plus 6 mm for the height of the base plate.

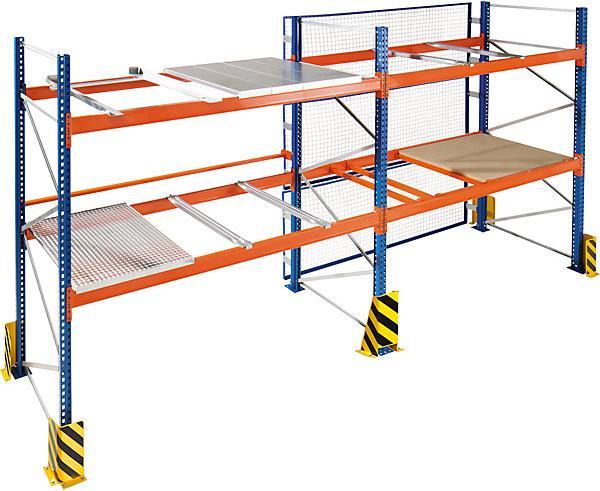

The product is delivered disassembled to allow for easy assembly. If the pallet racks are to be set up in an earthquake-prone area, special measurements must be requested.
