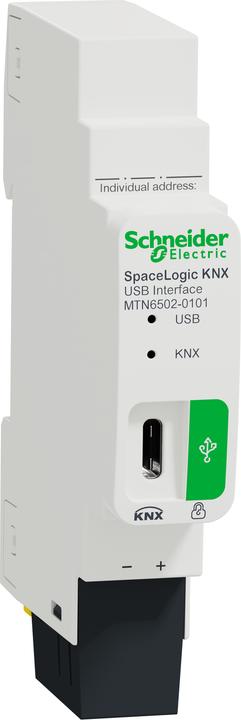

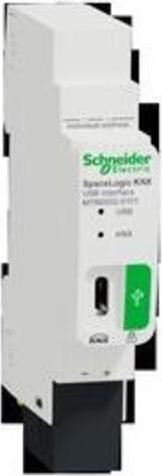

Schneider Electric SpaceLogic KNX USB Interface DIN- MTN6502-0101

Schneider Electric SpaceLogic KNX USB Interface

Manufacturer: Schneider Electric
Designation: SpaceLogic KNX USB Interface
DIN Rail Type: MTN6502-0101
Bus System KNX: yes
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: USB
Mounting Type: REG
Width in Division Units: 1
Material: Plastic
Material Quality: Polycarbonate (PC)
Surface Protection: untreated
Color: white
Transparent: no
Max. Transmission Rate: 9600 Bd
With Bus Coupling: yes
With Labeling Field: yes
With LED Display: yes
Protection Class (IP): IP20

Additional Details:
The SpaceLogic KNX USB Interface DIN Rail is used to connect a programming or diagnostic device with a USB 2.0 interface to the KNX. The USB connector (Type C) is galvanically isolated from the KNX bus. It can be used as a programming interface for ETS software version 4 (or higher). The device is programmed locally with the physical address and does not have a programming button or programming LED. It features 2 status LEDs. The KNX USB Interface supports KNX Longframe communication and is compatible with KNX security telegrams/devices. This enables faster KNX downloads when the target device supports it. Designed for mounting on TH35 DIN rail according to EN 60715. The bus connection is made via a bus connection terminal. Device width - 1 module approximately 18 mm. Contents - Includes bus connection terminal and cable cover.
