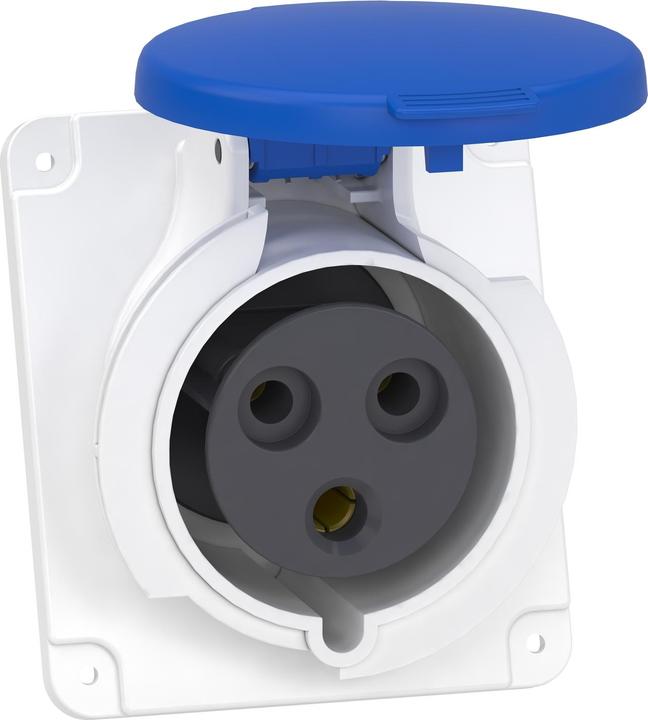

Schneider Electric SE PKY32F423 Surface-mounted socket outlet 230V

Schneider Electric Surface-Mounted Socket PKY32F423

Manufacturer: Schneider Electric
Designation: Surface-Mounted Socket IP44 32A 230V
Type: PKY32F423
IEC Current Rating: 32 A
Voltage according to EN 60309-2: 230 V (50+60 Hz)
Rated Voltage: 200..250 V
Rated Frequency: 50..60 Hz
Number of Poles: 3
Clock Position: 6 h
Identification Color: blue
RAL Number: 7035
Protection Class (IP): IP44
Connection Technology: screwless terminal
Plug Orientation: angled
Cable Entry: none
Material: plastic
Military Version: no
Flange Dimension Vertical: 100 mm
Drilling Hole Distance Vertical: 85 mm
Flange Dimension Horizontal: 90 mm
Drilling Hole Distance Horizontal: 77 mm

Further Details:
PratiKa straight surface-mounted socket. It features 2P+E poles, a rated current of 32 A, and an operating voltage of 230 VAC. The dimensions of the base plate are (W) 90 mm x (H) 100 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The cross-section of cables for 32 A is from 2.5 mm² to 6 mm². The color of the base is light gray (RAL 7035), allowing the operating voltage to be easily identified in blue. The frequency is 50 Hz or 60 Hz. The contact clock position is 6 h.
