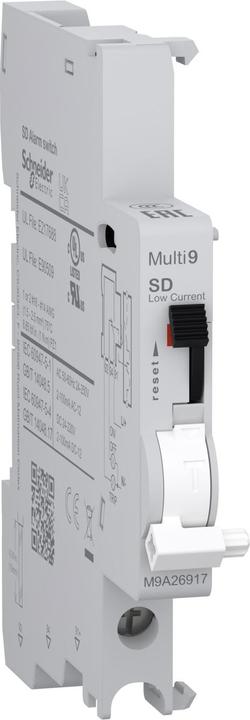

Schneider Electric Remote signalling + auxiliary switch

This electrical accessory from Acti9 is a switch (normally open/normally closed) designed to indicate the status of the circuit breaker in the event of an electrical fault or tripping. The operating current ranges from 2 mA to 100 mA at a frequency of 50 Hz to 60 Hz with 24 VAC to 240 VAC and 24 VDC to 220 VDC. It features a fault indication contact and is intended for installations in industrial settings and by OEMs. This electrical accessory is compatible with the Multi9 series such as C60BP, C60SP, C60, and N40.

The screw terminal connection at the bottom allows for rigid copper cables with a cross-section of 2.5 mm². The connection also accommodates flexible copper cables with a cross-section of 1.5 mm². The Ui rated insulation voltage is up to 500 V, and the rated impulse voltage Uimp is 4 kV. The stripping length is 9 mm, and the tightening torque for the connection is 1 N·m (bottom) for the screwdriver type PZ1.

The IP protection rating is IP20, and the operating temperature ranges from -25 °C to +70 °C. The storage temperature ranges from -40 °C to +85 °C. This product complies with the standards EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB/T 14048.5, GB/T 14048.17, UL 1077, UL 489, CSA C22.2 No 0-10, CSA C22.2 No 5-13, CSA C22.2 No 235-04, and CSA C22.2 No 65-03. It has EAC and CCC quality labels and is certified with CE, UKCA, UL, and CSA certifications.
