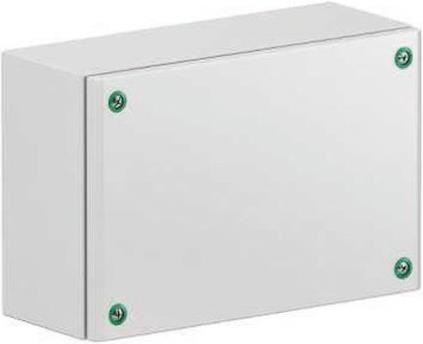

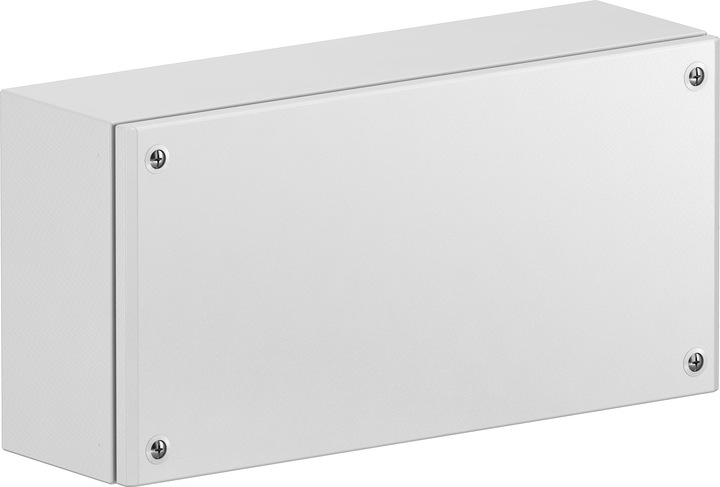

Schneider Electric IP66 Mild Steel enclosure 150x300x80mm

Height outside: 150 mm
Outer width: 300 mm
Outer depth: 80 mm
Outer dimensions: 150 x 300 x 80 mm
Housing material: Steel
Transparent door: No
IP protection class: IP66
Chassis plate: No
Shielding plate: No
Color: Gray
RAL code: RAL 7035
Mounting kit: No
Indoor mounting type: Panel

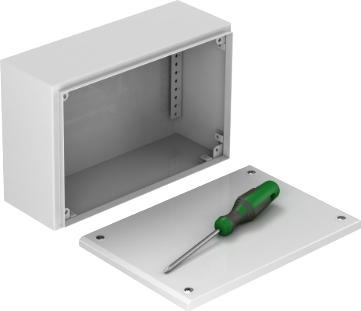

Three profiles for width 800 mm, two for bus box (three screws for width greater than 400 mm), four for flat and access boxes (six screws for width greater than 400 mm). Spacial SBM industrial boxes. Schneider Electric's Spacial SBM steel enclosures are available in three versions and are designed for use in industrial machinery and building applications. The wall-mount enclosures have a one-piece rectangular body with seamed channels on the front and two (or three) drilled profiles for installing mounting plates and DIN rails on the back, and the mounting holes are 12.5 mm in diameter. The enclosure cover has a polyurethane gasket and two, three, four, or six threaded half-turn screws (version dependent). An M6 x 16 ground connection stud is welded into the cover to provide a potential connection terminal for the enclosure.

Features and Benefits:

• 28 different sizes available, using the accessories from the expansion box even up to 42 sizes
• Depths of 80 mm and 120 mm available, with or without pre-installed FL21 cable entries
• IP66 protection, meaning the enclosures are dust-tight and provide protection against strong water jets and heavy seas
• External mechanical impact resistance of up to IK10 (20 joules) - this means that the wall box can withstand a 5 kg object dropped from a height of 40 cm
• Can be installed with a screwdriver
• Direct mounting from the back or using external mounting lugs
• Protected inside and out by gray (RAL 7035) painted polyester
• Attractive and robust design to protect against sensitive electronics.

Typical applications: Schneider's Spacial SDB series is suitable for use in underground garages, road, and railroad tunnels.
