Schneider Electric Binary input

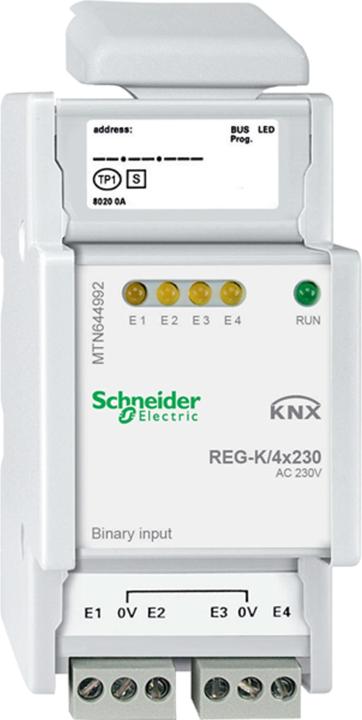

Schneider Electric Binary Input MTN644992

Manufacturer: Schneider Electric
Designation: Binary Input REG-K/4x230
Type: MTN644992
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 2.5
With Bus Coupling: yes
Bus Module Removable: no
LED Control: no
With LED Display: yes
Number of Inputs: 4
Input Voltage: 0..230 V
Type of Input Voltage: AC
External Query Voltage Required: no
Protection Class (IP): IP20

Schneider Electric Binary Input MTN644992: Additional Details
Schneider Electric KNX. For connecting 4 conventional devices with AC 230 V outputs to KNX. With integrated bus coupler and pluggable screw terminals. The input voltage level is indicated by a yellow LED for each input. A green LED indicates operational readiness after the application has been loaded. Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal. Input Voltage: AC 230 V, 50-60 Hz. Inputs: 4. Input Current: AC 12 mA, 0-Signal: / 160 V, Maximum Cable Length: 100 m, Device Width: 2.5 TE corresponds to approximately 45 mm. Delivery includes: Bus connection terminal and cable cover.
