Schneider Electric Binary input

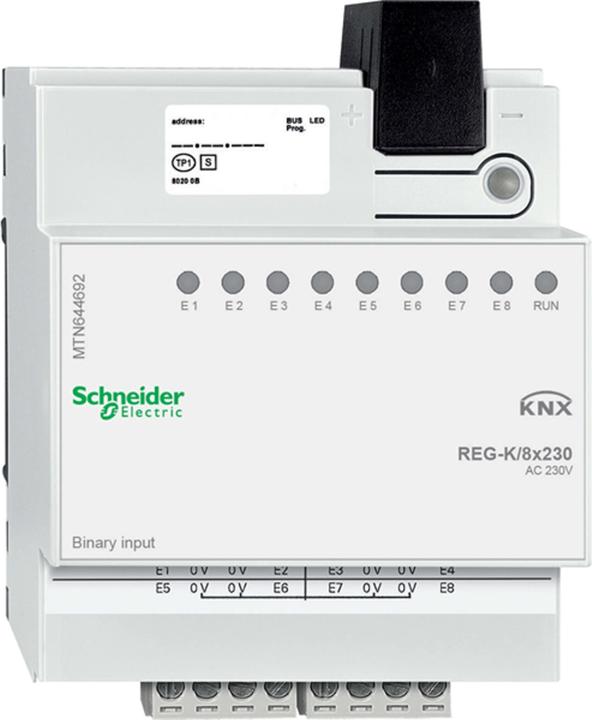

Schneider Electric Binary Input MTN644692

Manufacturer: Schneider Electric
Description: Binary Input REG-K/8x230
Type: MTN644692
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: REG
Width in Division Units: 4
With Bus Coupler: yes
Bus Module Removable: no
LED Control: no
With LED Display: yes
Number of Inputs: 8
Input Voltage: 0..230 V
Type of Input Voltage: AC
External Query Voltage Required: no
Protection Class (IP): IP20

The Schneider Electric Binary Input MTN644692 allows the connection of 8 conventional devices with AC 230 V outputs to KNX. It features an integrated bus coupler and pluggable screw terminals. The input voltage level for each input is indicated by a yellow LED. A green LED indicates operational readiness after the application has been loaded.

Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal.
Input Voltage: AC 230V, 50-60Hz
Inputs: 8
Input Current: AC approx. 7 mA
Cable Length: max. 100 m
Device Width: 4 TE corresponds to approx. 72 mm.
Scope of Delivery: Includes bus connection terminal and cable cover.
