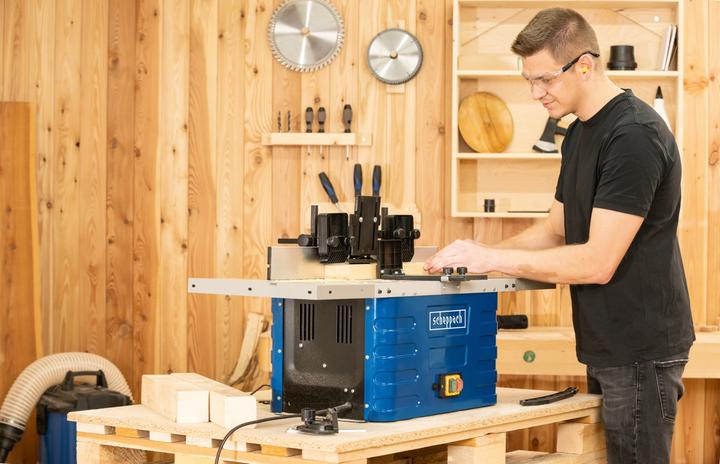

The compact HF60 wood router from Scheppach is a practical table model that can also be used as a mobile unit when needed. Its sturdy construction and a weight of just under 21 kg provide the table router with a stable base. Thanks to the table extensions on both sides, this compactly designed milling machine offers a pleasantly large working area. Table routers are popular in hobby workshops for creating grooves, slots, or other recesses.
The HF60 is suitable for use with cutters up to a maximum diameter of 50 mm. Its robust build and weight ensure that the wood router is particularly stable and secure. With a table size of 610 x 360 mm, the wood router can fit into small workshops as well. The integrated table extensions on both sides increase the table area, allowing for the processing of large workpieces and the execution of special milling tasks without any issues.
The spindle height, and thus the height of the milling tool, can be easily adjusted by turning a hand crank on the side of the machine. The desired height can be continuously set from 0-40 mm and then fixed with a clamping screw. Three clamping devices with 6, 8, and 12 mm are included to secure the workpieces on the milling table, ensuring good guidance and safe handling.

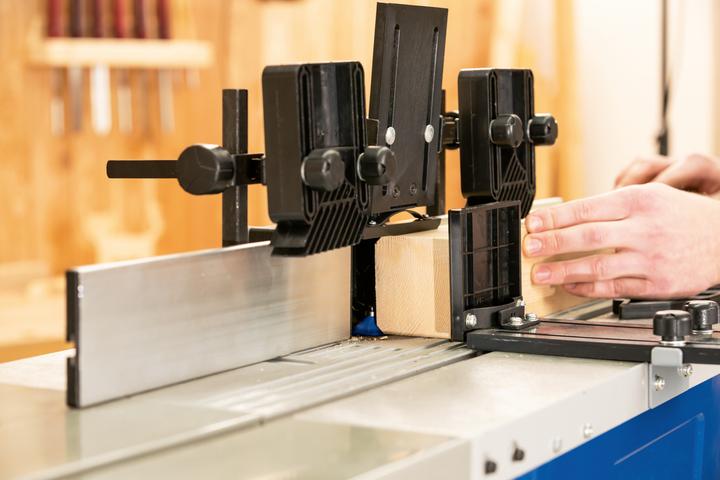

Thanks to the stepless speed control ranging from 11,500 to 24,000 revolutions per minute, the workpiece can be optimally processed. The 1500 W motor provides sufficient power. The HF60 also comes standard with an angle stop and particularly large aluminum stops that hold the workpiece in place.
Router type | Milling machine |
Collet | 12 mm, 6 mm, 8 mm |
Power supply | Electrical connection |
Power consumption | 1500 W |
Item number | 24011753 |
Manufacturer | Scheppach |
Category | Routers + Disc cutters |
Manufacturer No. | 5902106901 |
Release date | 14.10.2022 |
Sales rank in Category Routers + Disc cutters | 26 of 627 |
May include power adapter | Yes |
Colour | Multicoloured |
Router type | Milling machine |
Collet | 12 mm, 6 mm, 8 mm |
Milling basket stroke | 40 mm |
Power supply | Electrical connection |
Mains voltage | 230 - 240 V |
Power consumption | 1500 W |
Sound pressure level (LpA) | 89 dB |
Sound power level (LWA) | 102 dB |
CO₂ emissions | 32 194.61 kg |
Climate contribution | CHF 10.70 |
Width | 360 mm |
Height | 311 mm |
Length | 66 cm |
Width | 52 cm |
Height | 38.50 cm |
Weight | 23.09 kg |
How often does a product of this brand in the «Routers + Disc cutters» category have a defect within the first 24 months?
Source: Digitec GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: Digitec GalaxusHow often is a product of this brand in the «Routers + Disc cutters» category returned?
Source: Digitec Galaxus
The Scheppach HF60 is a table router specifically for DIY enthusiasts. The height adjustment and the speed chart directly on the device are particularly pleasing - both save time and reduce operating errors. The safety and pressure devices are well-designed and guide the workpiece past the cutter in a controlled manner, even with small cross-sections...
