Product details
Tile Cutter FS4700 1200W 230V 50Hz

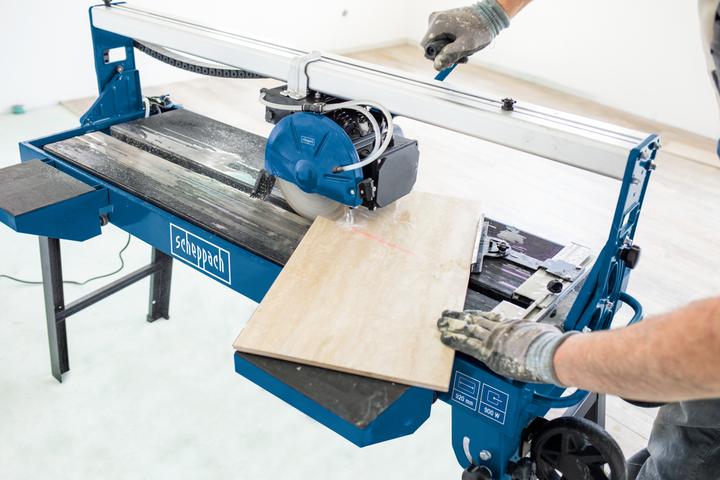

The Tile Cutter FS4700 is ideal for cutting large-format tiles, which are currently in trend. The diamond cutting blade easily cuts wall and floor tiles, marble, and much more. Angle and bevel cuts are also accomplished effortlessly.

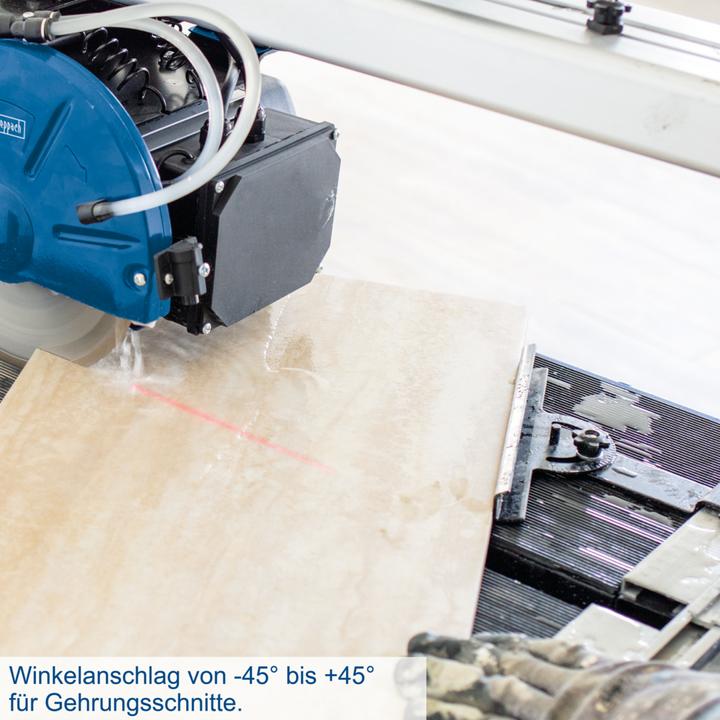

Cut large-format tiles with a side length of 1200 mm or diagonal cuts with a side length of 848 mm. The movable cutting head provides more control during cutting. The swiveling cutting head allows for bevel cuts and enables straight, bevel, and plunge cuts.

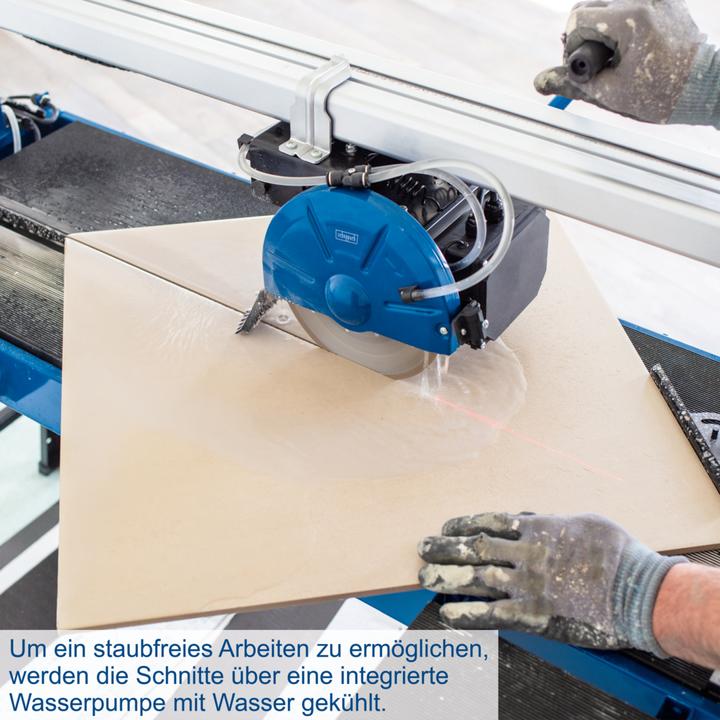

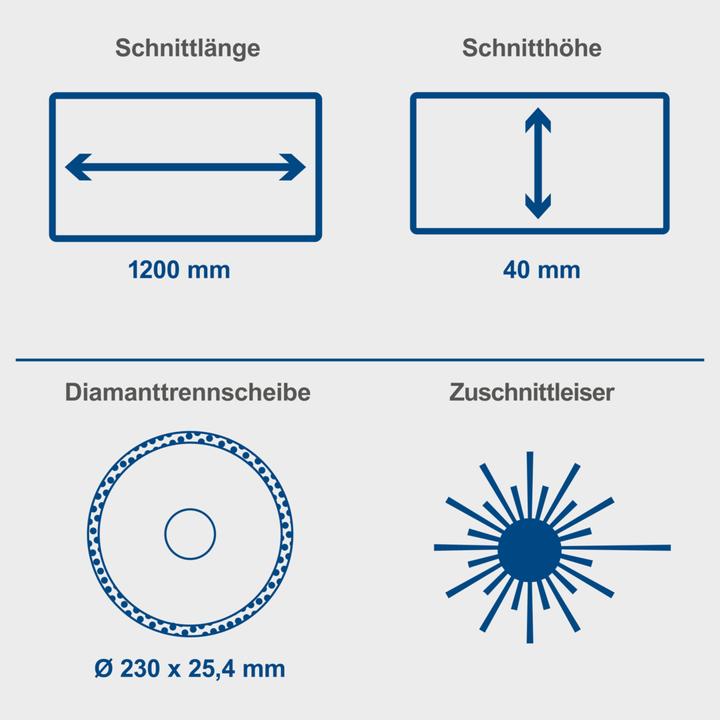

Handling is simple thanks to the powerful induction motor with thermal protection. The tile cutter offers a large cutting length of 1200 mm and a cutting height of 40 mm. The stable steel construction and two guide rails ensure the best cutting results. A cutting laser precisely indicates the cutting edge.

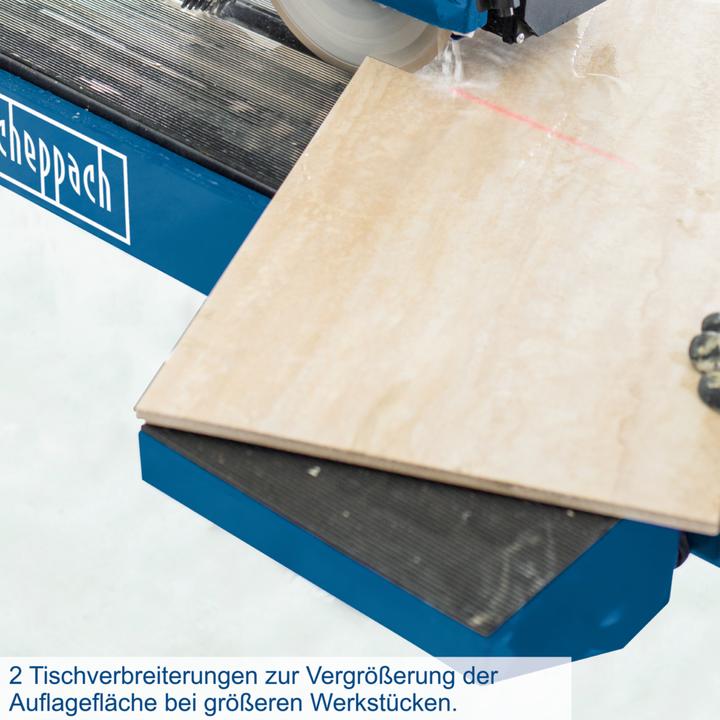

The foldable undercarriage with transport device and two table extensions increases the support area for larger workpieces.
Technical Data:
Dimensions L x W x H: 1845 x 440 x 1155 mm

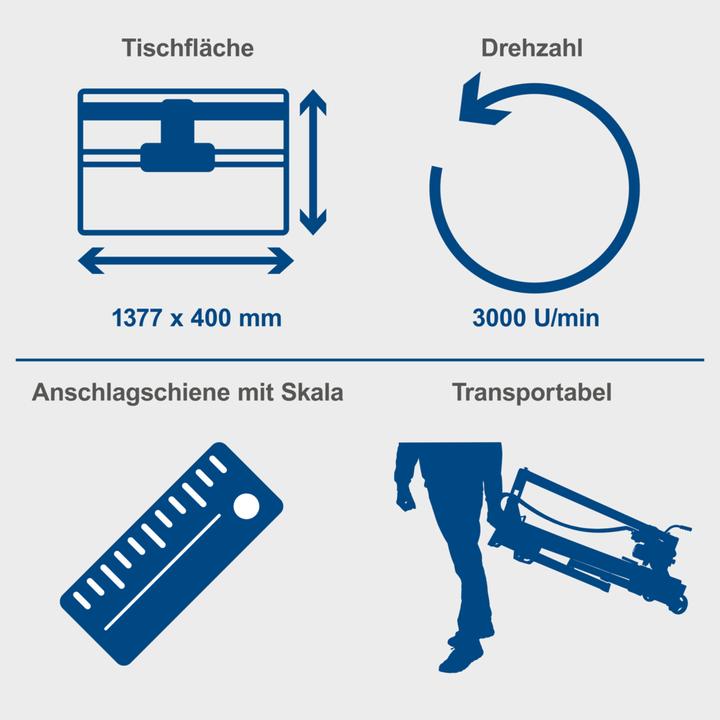

Table Size: 1377 x 400 mm
Blade Diameter: 230 mm
Water Tank: 40 L
Max Cutting Height at 90°: 40 mm
Max Cutting Height at 45°: 34 mm
Motor: 230 V~
Motor Power: 1200 W.
Power supply | Electrical connection |
Power | 1200 W |
Max. Depth of cut at 45 | 34 mm |
Max. depth of cut at 90° | 40 mm |
Item number | 21251269 |
Manufacturer | Scheppach |
Category | Circular table saws |
Manufacturer no. | 5906707901 |
Release date | 21.6.2022 |
Sales rank in Category Circular table saws | 8 of 274 |
May include power adapter | Yes |
Colour | Black, Blue |
Exact colour description | Black, Blue, Grey |
Material group | Metal |
Material | Steel |
Max. Depth of cut at 45 | 34 mm |
Max. depth of cut at 90° | 40 mm |
Table Tilt angle | 45° |
Width | 40 cm |
Power supply | Electrical connection |
Battery equipment | No batteries supplied |
Mains voltage | 230 V |
Power | 1200 W |
Max. Idle speed | 3000 rpm |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 4x catcher, Angle stop, Cooling water pump, Handgrip, Table extension, Tile cutter |
Length | 137.70 cm |
Width | 40 cm |
Height | 115 cm |
Weight | 57.64 kg |
Length | 55 cm |
Width | 78 cm |
Height | 183 cm |
Weight | 70 kg |
