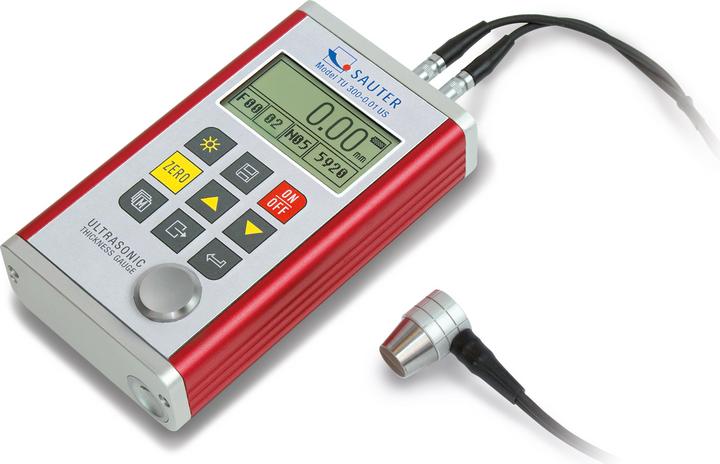

Sauter Ultrasonic thickness gauge 230mm, 5 MHz

Resolution: 0.01 mm
Accuracy: ±0.5
Frequency: 5 MHz
Display type: Digital
Dimensions: 132 x 76 x 32 mm
Battery type: AA
Height: 32 mm
Length: 132 mm
Measuring range max: 230 mm
Measuring range min: 1.2 mm

Calibration tool, 2 x 1.5V AA batteries, carrying case. Material thickness gauge, TU series. Digital material thickness gauge with RS-232C interface and external measuring head with 1 m cable for easy access to the measuring point. Measuring range switchable between mm and inches with automatic switch-off. Measuring head diameter: 10 mm, frequency: 5 MHz. Speed of sound: 1000 to 9999 m/s. Data memory for 20 files with 100 measured values each. Suitable for measuring the thickness of hard materials such as metal, glass, and plastic. Ideal for inspecting material thickness, corrosion, and wear in pressure vessels, boilers, and tanks in mechanical engineering, ship and bridge construction, as well as in power plants and the oil industry. Dimensions (L x W x H): 132 x 76 x 32 mm. Weight: 345 g.
