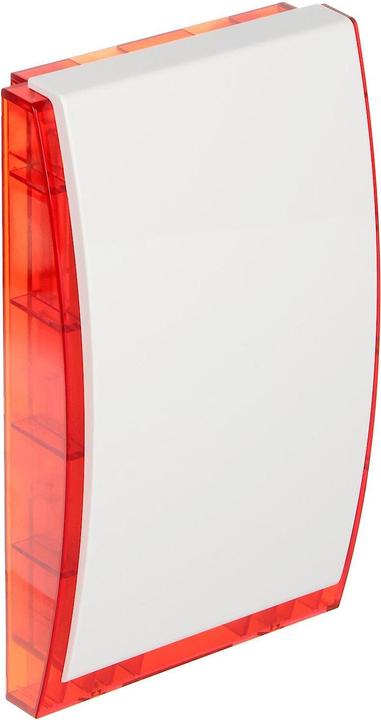

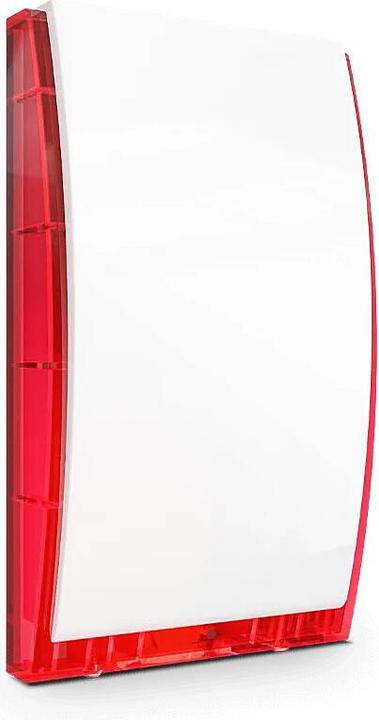

Satel WIRELESS EXTERNAL ALARM ASP-200-R ABAX / ABAX2

An external, controlled, wireless optical-acoustic alarm is designed to signal a burglary or attack. The light source is an LED, and the sound signal is generated by a piezoelectric transducer. The device is powered by an efficient battery with a capacity of 13 Ah and a high operating temperature range. The outer casing of the alarm system is made of impact-resistant polycarbonate, ensuring very high mechanical durability and an aesthetic appearance even after many years of operation. It is compatible with the wireless system ABAX / ABAX2.

Sound level: 105 dB
Frequency band: 868.0 MHz to 868.6 MHz
Radio range (in open field): max. 500 m with ABAX, max. 2000 m with ABAX2

Selected features:

• Optical and acoustic alarm signaling wirelessly
• Tamper protection (detachment from installation location and housing opening detection)
• Remote configuration
• Choice of 4 different acoustic signals
• Intelligent radio system for optimal low-power communication
• Equipment expansion
• Battery status monitoring

Lightweight and robust housing
Color: Red
Power supply: Battery BAT-ER-3.6 (ER34615) 13 Ah (included)
Maximum current consumption: 480 mA
Battery life: 2 years
Operating temperature: -40 °C to 55 °C
Weight: 0.8 kg
Dimensions: 148 x 254 x 64 mm
Manufacturer / Brand: SATEL
Warranty: 2 years
Manual and data sheet included.
