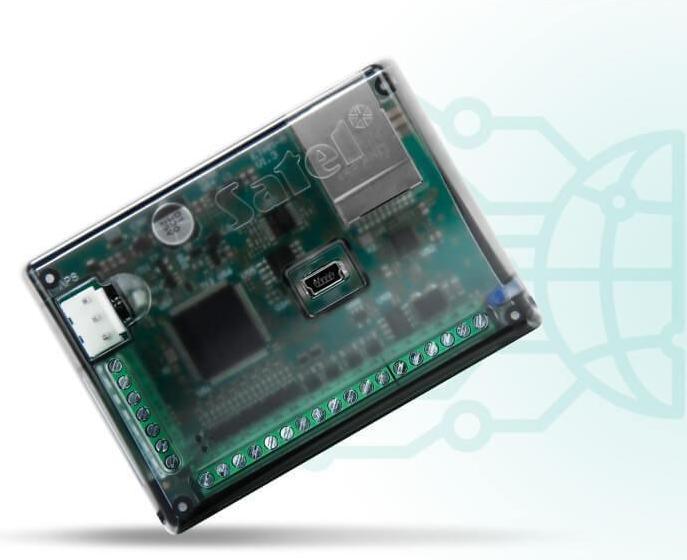

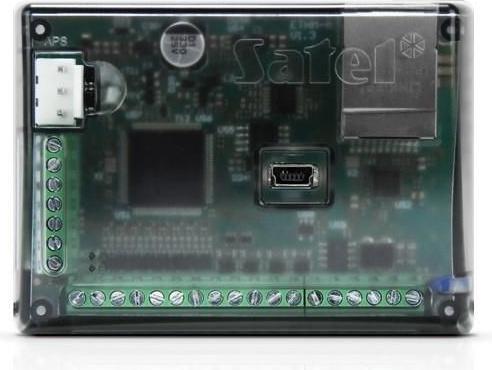

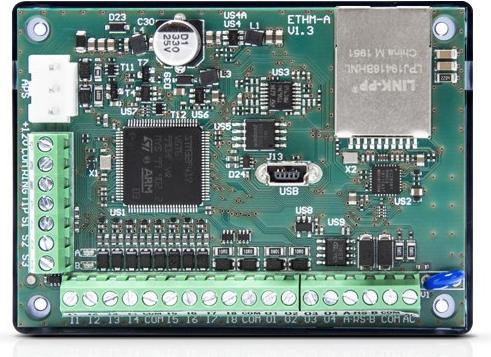

Satel Control Panel Module/Universal Ethm-A

ETHM-A is a universal monitoring module that can operate autonomously, as part of an intruder alarm system, or in automation systems. The module allows transmission of information via the Ethernet network.

In intruder alarm systems, the module can be used for event reporting when connected to an alarm control panel via its dialler. ETHM-A can also be connected to a control panel using suitably configured control panel outputs connected to the module inputs.

ETHM-A has 8 inputs that can be programmed as normally open (NO), normally closed (NC), or analogue to work with devices equipped with NO or NC outputs, analogue sensors, or D/A converters. Additionally, it is equipped with a 1-Wire digital sensor bus and can be connected to a maximum of 8 detectors (e.g., temperature) with a maximum bus length of 30 m. In this way, the module can be used to collect and transmit various types of data within the IoT, such as current temperature, humidity level, and others. ETHM-A can also transmit to the monitoring station events that have taken place in the alarm system (e.g., arming, alarms, and others).

ETHM-A has 4 transistor outputs (OC). They can be controlled remotely, for example, using the GX CONTROL mobile app, a computer with the GX Soft software installed, or within the IoT.

The module can also be used to send push notifications to mobile devices with the GX CONTROL app installed and via email.

To program and configure the module, a PC with the GX Soft software installed is required. ETHM-A supports local connection (USB) or remote connection (Ethernet). The ETHM-A firmware can be updated remotely using the UpServ software.
