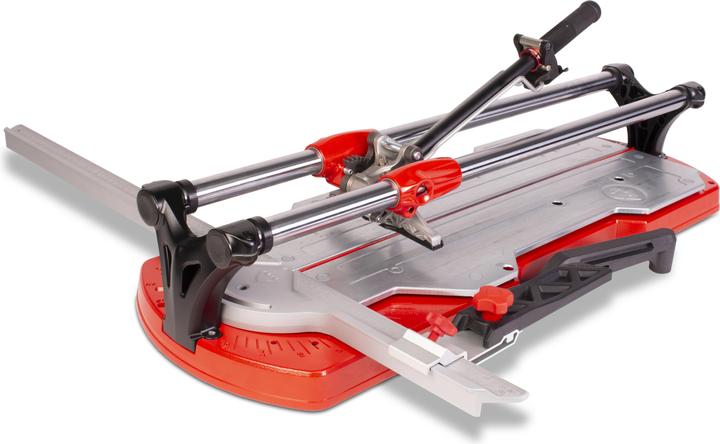

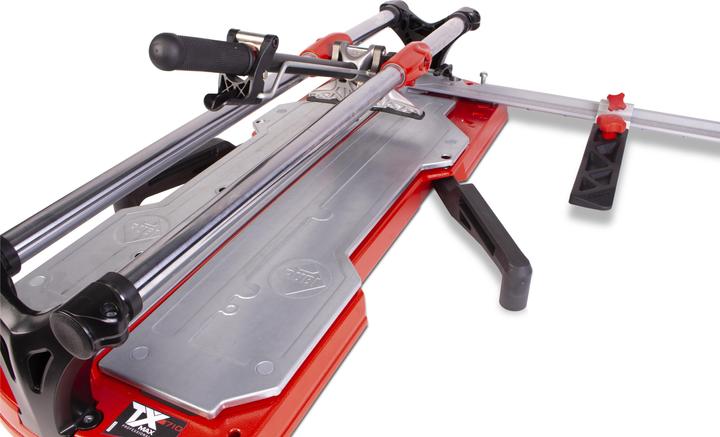

Rubi SARA TILE CUTTING TX-1020 MAX

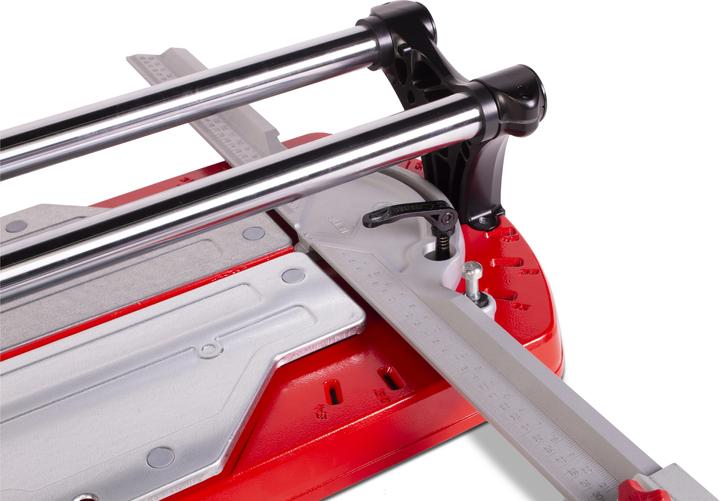

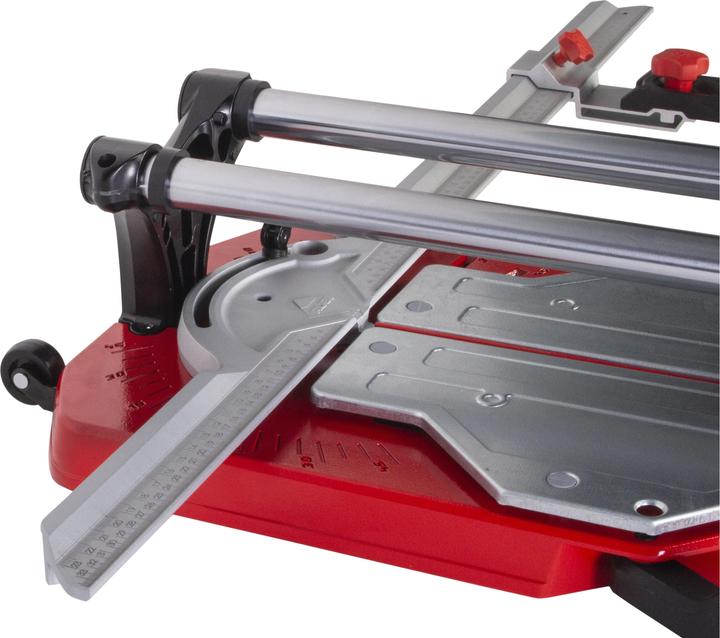

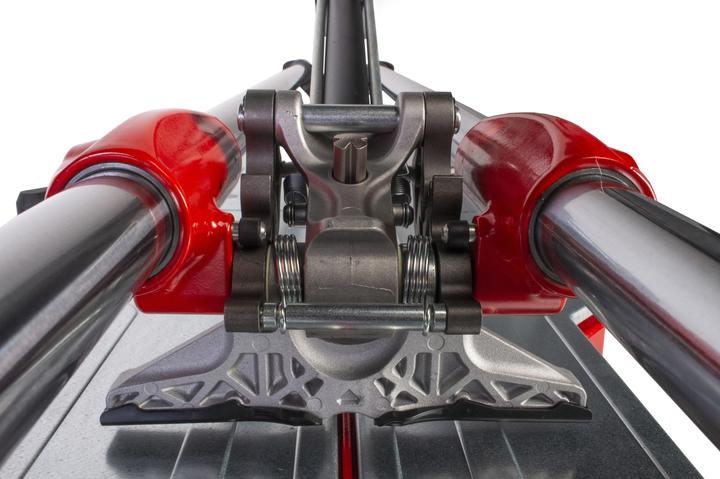

The range of TX-MAX professional manual cutters is perfect for intensive cutting of all types of ceramic tile. Thanks to its high-performance multipoint breaker and its rotating square system, TX-MAX models allow easy and quick execution of angular cuts (from 0º to 45º), especially in porcelain stoneware tiles (A1a / B1a). Its high separation power (up to 1200 kg) allows the TX-MAX cutters to perform excellently with extruded stoneware.

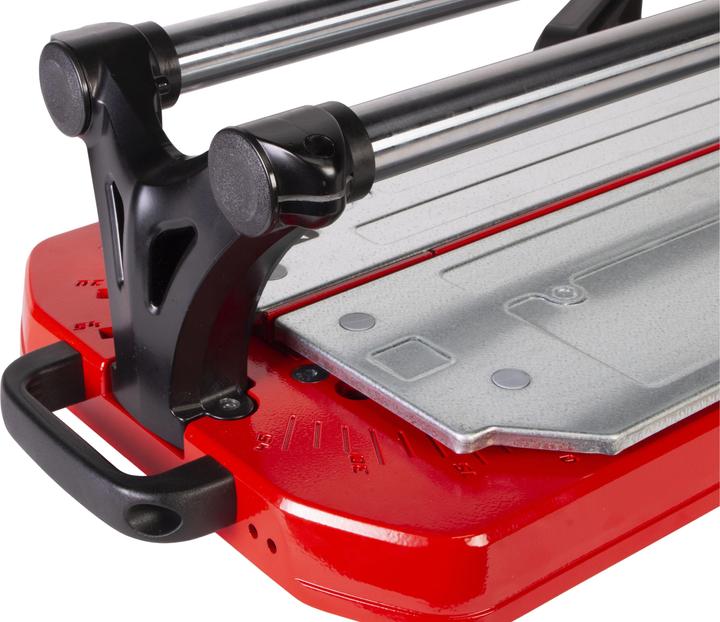

Tubular steel guides of 30 mm in diameter and the head with extra-long aluminum slides provide impressive structural robustness, maximizing the capabilities of the models with the highest cutting capacity (TX-1020 MAX and TX-1250 MAX).

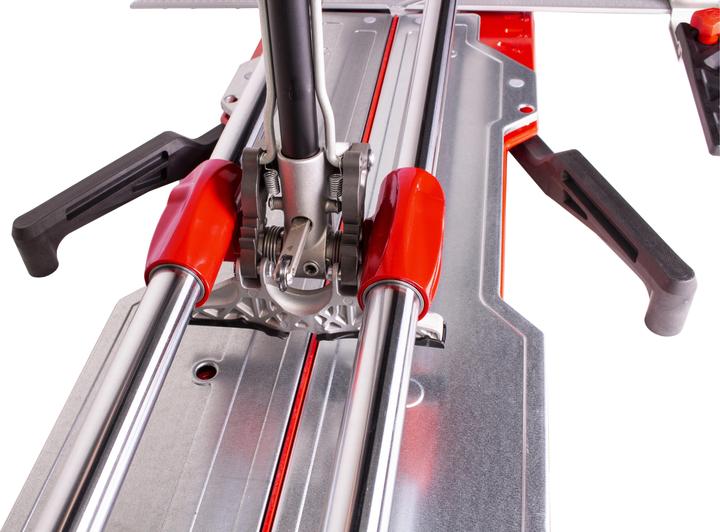

The advanced position of the rivet increases visibility during scratching and separation, and the gripper incorporates a protective removable cover, allowing work on the most delicate surfaces without the risk of leaving marks.

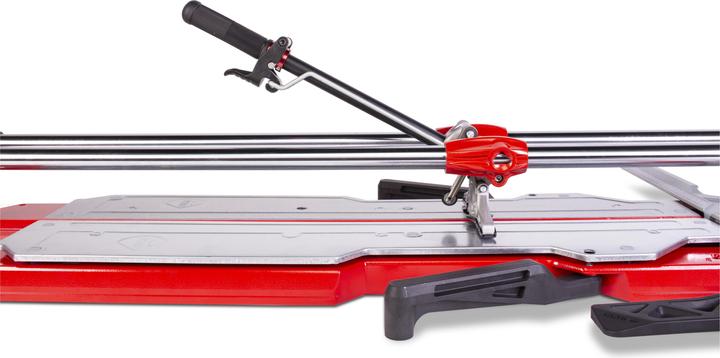

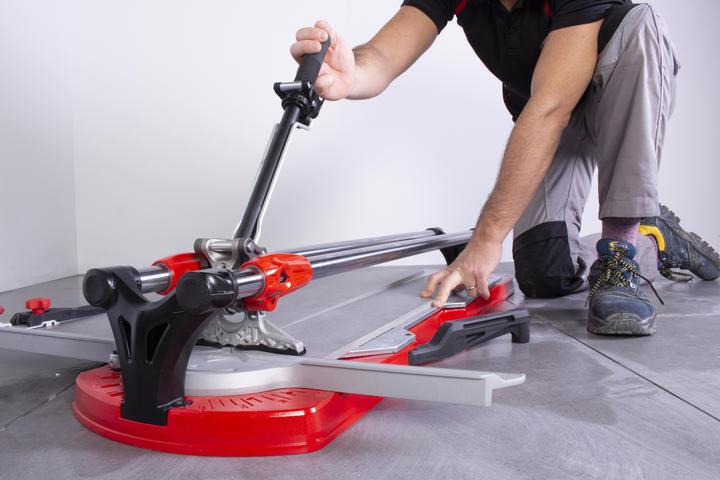

The separator mechanism allows for one-handed use, facilitating the locking and unlocking of the gripper through a ratchet and trigger system. This system enhances work performance, both with materials of low thickness and those of greater thickness (from 3 to 21 mm without the protector, and up to 19 mm with the anti-marking protector included).

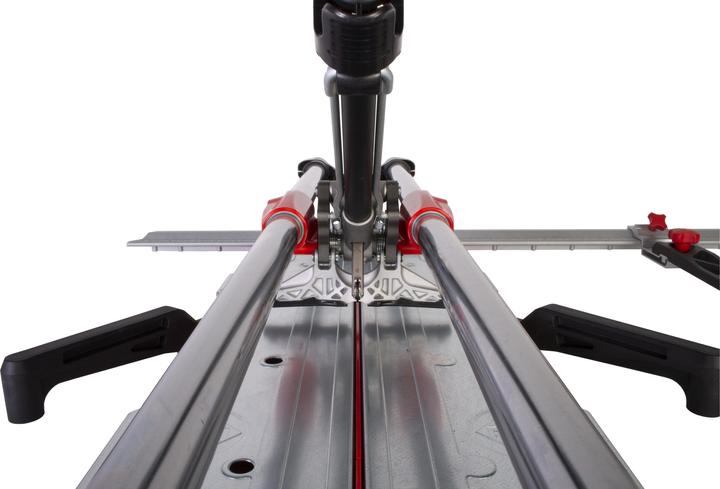

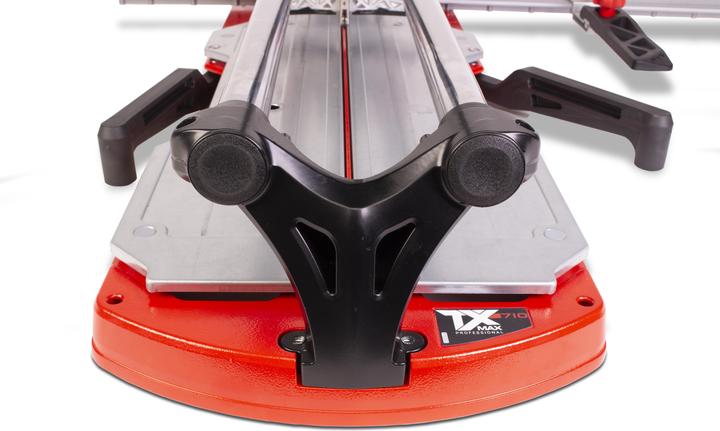

As a complement to the floating table system, the 710 and 1020 models are equipped with two additional side arms to increase the support surface for large-format tiles. The 1250 model has four arms (two on each side).

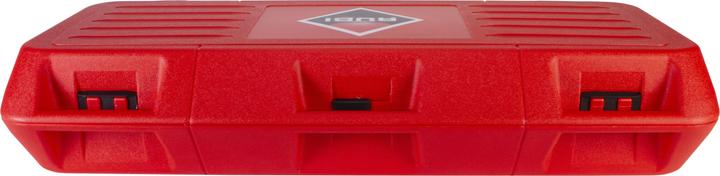

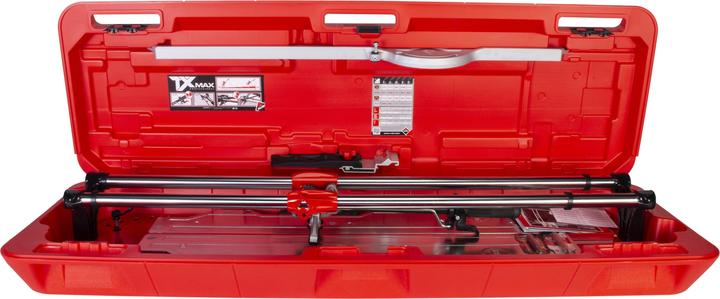

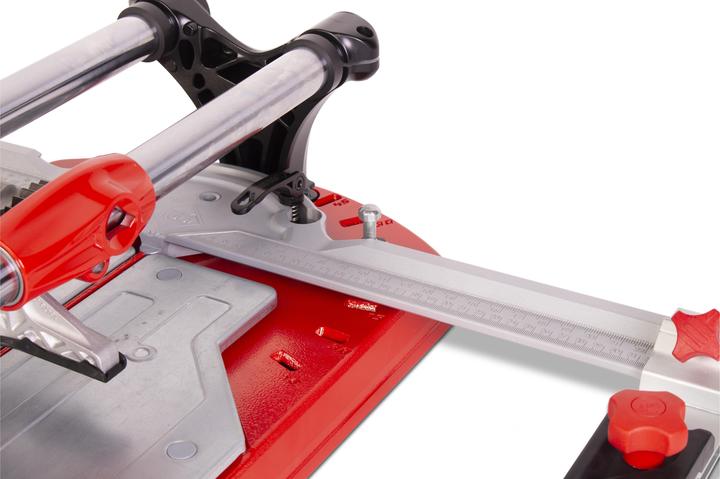

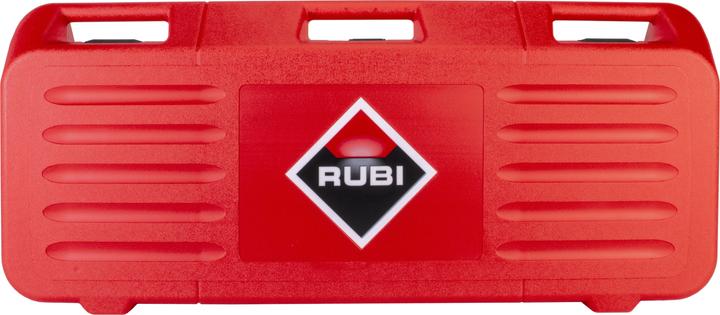

All models of the TX-MAX range include a lateral stop for measuring and blocking repetitive narrow cuts and strips, as well as two cords (8 mm and 22 mm extreme) and a traditional carry case.

The TX-MAX manual cutters are compatible with the full range of RUBI PLUS scoring wheels.

The TX-1250 MAX model includes, in addition to the carry case, a handle and wheels to facilitate portability in the workplace.
