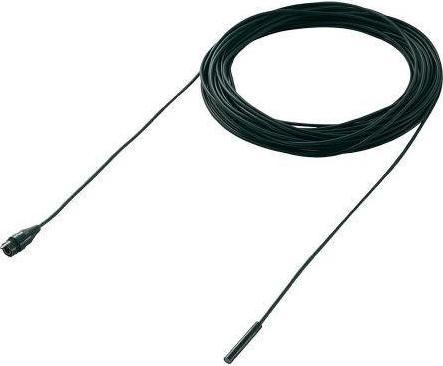

RS PRO Type K Exp.Junction Thermocouple PFA10m

Type K thermocouple with Teflon (PFA) sensor material. The connection type is a miniature plug, with a cable length of 10 meters. It meets the standards EN 60584-3:2008 and IEC 584-3.

This Type K thermocouple with exposed contact features a PFA sheath for rapid response and a welded exposed connection. It consists of a pair of PFA Teflon-insulated, 2-wire flat conductors. The PTFE-insulated conductors are arranged in a flat configuration and protected by a PFA sheath, which provides good mechanical strength and flexibility, as well as resistance to oils, acids, and other harmful liquids. The thermocouple is available in sizes of 1/0.3 mm or 1/0.5 mm and lengths of 1, 2, 5, or 10 meters. It is equipped with a miniature flat connector and has a tolerance class 1 for optimal accuracy. The insulation is designed for temperatures ranging from -75 °C to 260 °C, with color coding for conductors and sheath according to IEC-584-3.
