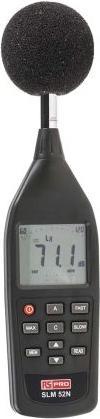

RS PRO Sound Level Meter

Sound level max: 130 dB
Sound level min: 30 dB
Resolution: 0.1 dB
Accuracy class: ANSI S 1.4:1983 Type 2, IEC 61672:2013 Class 2
Weighting: A, C
Display type: LCD
Battery type: 9V battery
Frequency max: 8 kHz
Operating temperature max: +50°C
Frequency min: 31.5 Hz
Plug type: BS 1363

The RS Pro SLM52N is an affordable, easy-to-use sound level meter designed to meet the needs of health and safety professionals for sound level monitoring in industrial and office environments. Both AC and DC signal outputs are provided via a simple standard 3.5mm coaxial jack for use with a frequency analyzer, level recorder, FFT analyzer, or graphical recorder.

Features and benefits:

• Large, easy-to-read 4-digit LCD display with analog bar graph
• Measurement from 30 to 130 dB in 5 ranges
• 0.1 dB resolution, 60 dB dynamic range
• A/C frequency weighting
• Fast/slow time weighting
• Maximum function
• Manual data storage and recall of 99 sets of measurements
• Analog output for connection to curve recorders, graphic recorders, and other data logging systems
• Battery powered or external input with 9 V DC

Dimensions: approx. 264 x 68 x 27 mm
Weight: approx. 260 g, including battery

Applications:

• Sound level monitoring
• Health relevant
• Safety relevant
• Industrial environments
• Office environments.
