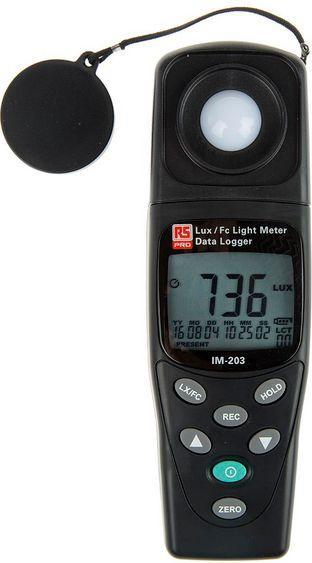

RS PRO Lux/FC light meter

Light level max: 200,000 lx
Light level min: 20 lx
Accuracy max: ±3 %
Sensor type: Photodiode
Power supply: Battery
Dimensions: 172 x 55 x 38 mm
Weight: 250 g
Functions: Data logging, USB interface
Height: 38 mm
Length: 172 mm
Model number: IM203

Includes USB cable, lens attachment, battery, user manual, CD-ROM, and carrying case. When the measuring device is not in use, the cap of the light sensor should remain in position to avoid wear on the photodiode. The Lux/FC light meter IM-203 from RS Pro is a high-quality light meter for lux and lumens per square foot. It measures light from visible light sources (sun, moon, and any light-emitting body) as well as from fluorescent lamps, metal halide lamps, high-pressure sodium lamps, and white light sources.

Features and Benefits:

• Compliant with the general technical requirements of Class A of JISC1609 1993 and CNS 5119
• Spectral range close to the spectral CIE luminous efficiency
• Measurement of luminous intensity in lux or lumens per square foot
• Measured light sources include all visible light sources
• Measurement range: 20, 200, 2000, 20000, 200000 lx, 20, 200, 2000, 20000 lumens per square foot
• Accuracy ±3 % (calibrated to standard incandescent lamp 2856°K), 6 % (other visible light sources)
• Cosine angle correction
• Automatic range selection
• Data logging device, USB interface, 7000 records
• Dimensions: 172 x 55 x 38 mm
• Weight: 250 g (including battery)

Applications:

• Warehouses and factories
• Commercial office buildings
• Hotels and restaurants
• Public buildings
• Schools and other educational buildings
• Libraries
• Museums and art galleries
• Hospitals and other healthcare buildings
• Garages and parking lots
• Stadiums and sports and recreation buildings
• Commissioning, operation, and maintenance of buildings
• Building security
• Photography and video.
