RP Technik EEQL023SC

RP-Technik LED Emergency Light EEQL023SC

Manufacturer: RP-Technik
Description: LED Emergency Light for recessed installation, lens system
Type: EEQL023SC
Mounting type: Recessed
With pictogram: no
Monitoring device: automatic self-test
With remote switch connection: no
With remote control: no
Power supply: decentralized (single battery)
Light source: non-replaceable LED
With light source: yes
Housing material: other
Housing color: white
Nominal voltage: 230 V
Protection class (IP): IP20
Impact resistance: IK03
Protection class: II

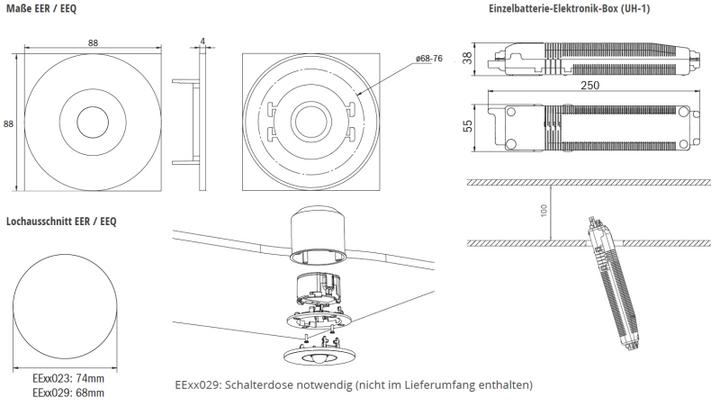

Width: 88 mm
Height/Depth: 4 mm
Length: 88 mm
Conductor cross-section: 2.5 mm²

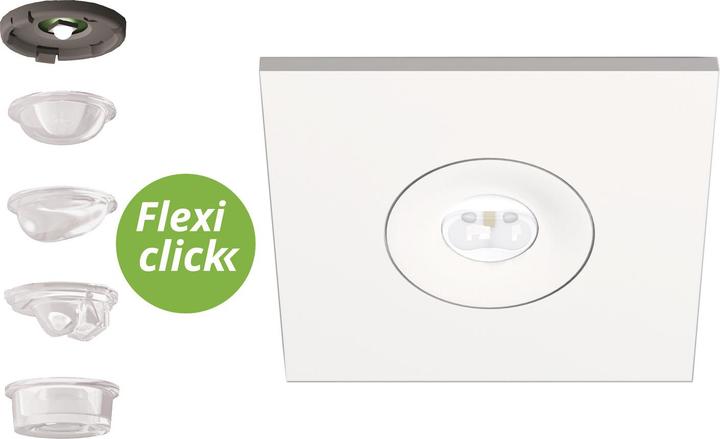

The LED emergency light for illuminating escape and rescue routes complies with the standards DIN EN 60598-1, DIN EN 60598-222, and DIN EN 1838. The ceiling-mounted light made of zinc-aluminum blends discreetly into the ceiling. It can be installed in conventional ceiling recessed mounting as well as in standard and fire protection boxes. The integrated status LED in the lens does not disrupt the harmony of the housing. The use of diffusing lenses and powerful LED technology ensures optimal light distribution and illumination of escape and rescue routes. The innovative integrated lens holder with quick-mounting device allows for flexible use of different lens types depending on the application. Round and flat lenses are included in the delivery.
