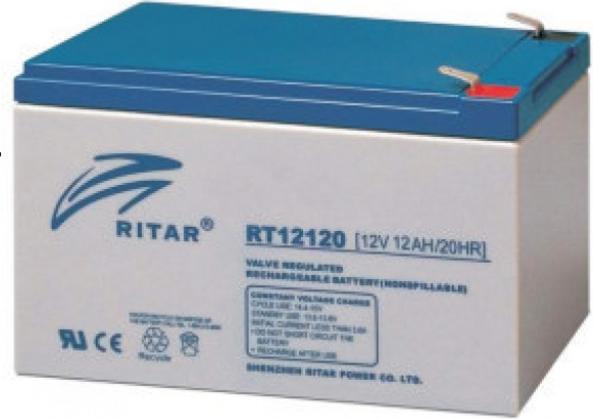

Ritar AGM Battery RT12120EV

Data Number of cells 6 Nominal voltage 12 Capacity 12 Ah @ 20 h Discharge up to 1.75V per cell @ 25°C Weight Approx. 4.2 Kg Maximum discharge current 120A (5 Sec) Internal resistance Approx. 13 mOHM Working temperature range Discharge: -20°C~60°CCharge: 0°C~50°CStorage : -20°C~60°C Nominal temperature range 25°C±5°C Charging voltage for trickle charge 13.7 to 13.9 VDC/unit at 25°C Maximum charge current 3.6 A End of charge voltage 14.6 to 14.8 VDC/unit at 25°C Self-discharge The batteries can be stored for more than 6 months at 25°C. Self-discharge < 3% per month Batteries must be charged before use. At higher temperatures the times will be shorter Connections Faston tab 250 Container Material ABS (UL94-HB) Data sheet English Comparison lists The following batteries can be replaced by this type: Panasonic LC-R12712PG1 Long WP12-12 YUASA NP12-12 For general information about batteries, see: About batteries For general information about charging batteries, see: About charging batteries.
