Revolt 102-piece roof mounting set for 6 solar modules

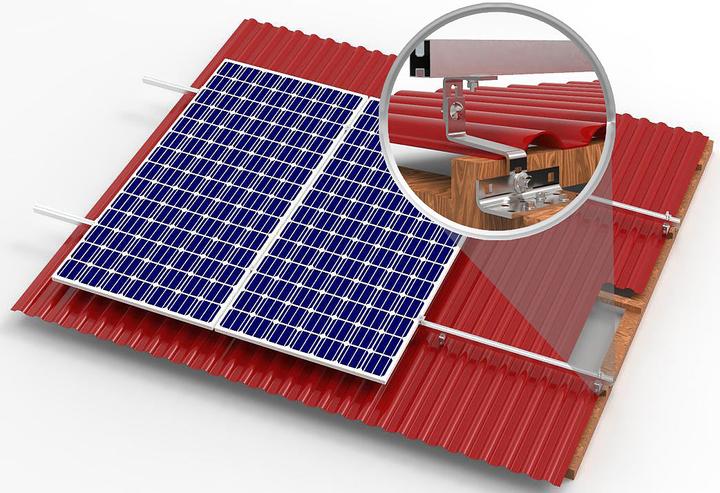

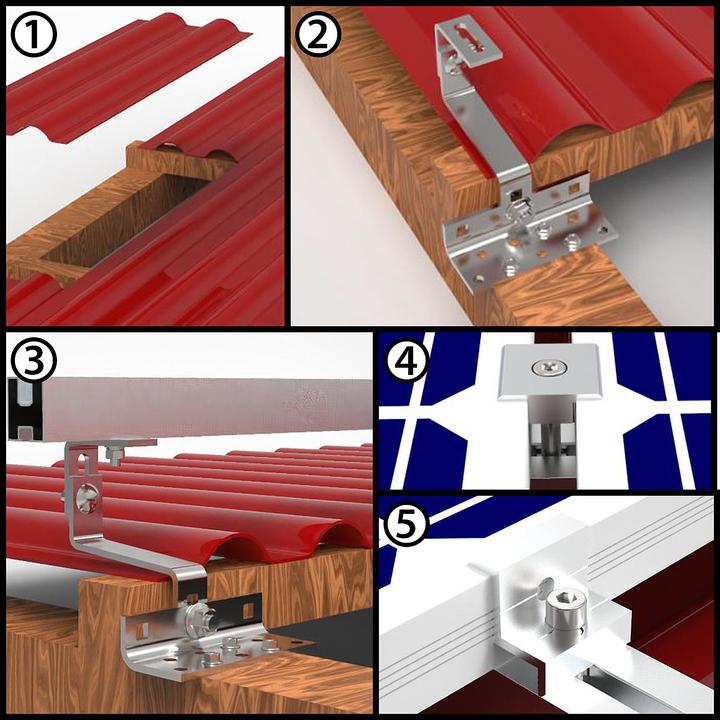

Install up to six solar panels professionally: Eight roof hooks and four 1.2 m long profiles form the framework for mounting directly over your roof tiles. Once the roof hooks and profiles are installed and grounded, simply lay your solar panels on top and secure them. Done! Suitable for both new and older roofs: Thanks to two screw-fixed joints per roof hook, you can easily adjust the alignment for mounting the aluminum profile as needed. Ideal for compensating for unevenness in your roof structure, for example.

102-piece roof mounting set for two solar panels
Suitable for new and old tiled roofs

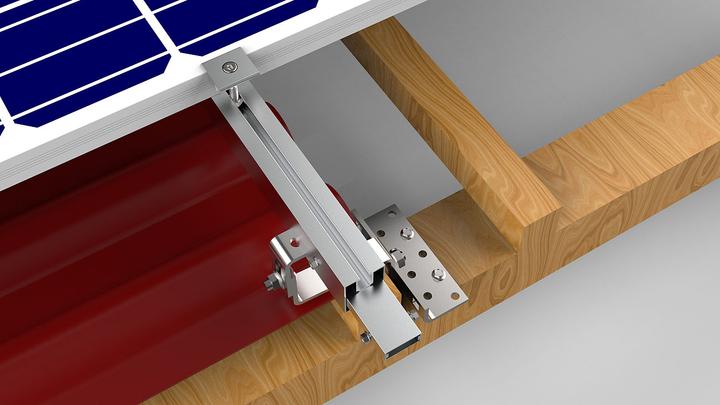

Roof hooks adjustable via two joints: compensate for unevenness in the roof structure
Supported solar panel width: up to approximately 1,150 mm
Supported solar panel frame thickness: 30 to 35 mm
Material: Aluminum and stainless steel
Weight: 27.9 kg

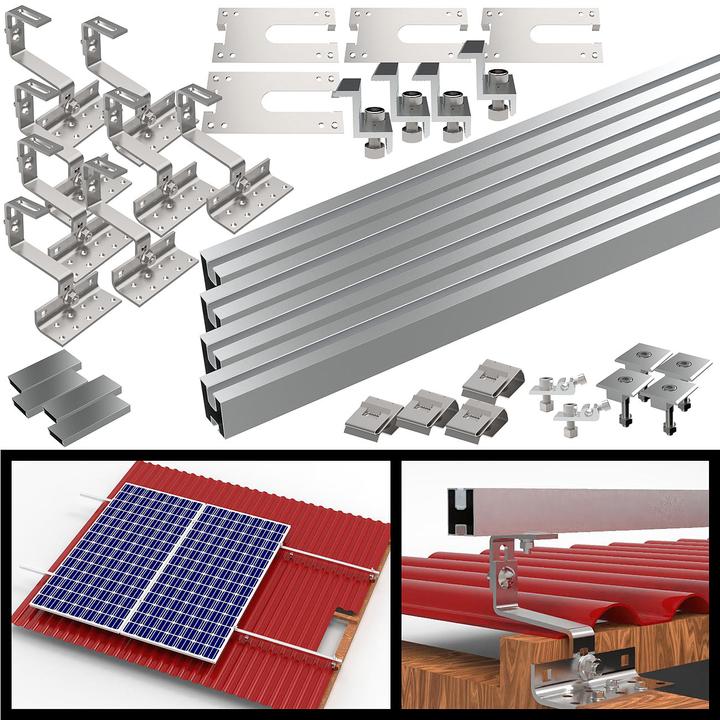

Set includes 12 aluminum profiles (each 1,200 mm), 12 profile connectors with 4 self-tapping mounting screws each, 24 roof hooks with 3 screws each (6.3 x 80 mm), 6 grounding brackets, 12 middle brackets, 12 end brackets, 12 grounding clips, 12 cable clips, and German instructions.
