Rehau C3 box

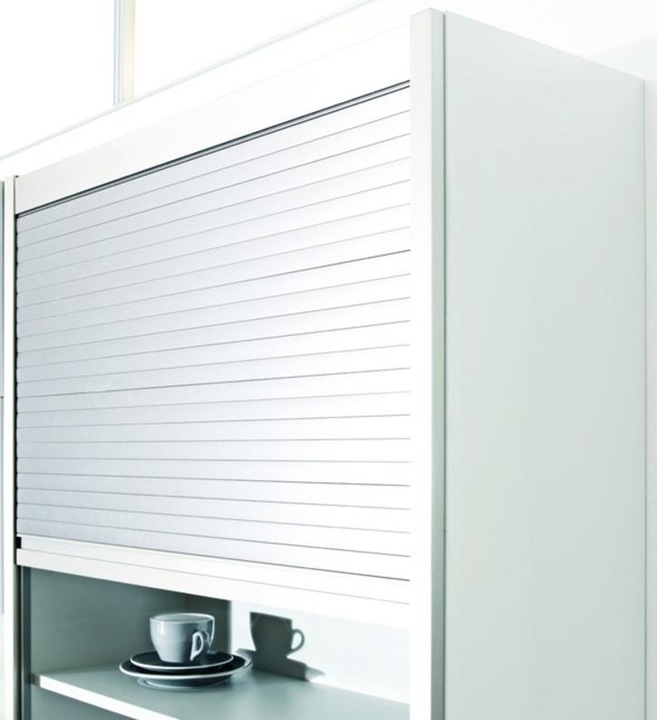

Roller shutter complete set Rehau C3-Box. This pre-assembled, space-saving tambour door module is ready to install for top-mounted or wall-mounted cabinets, designed for vertical tambour door operation. It includes a cassette module for side screwing, eliminating the need for an intermediate shelf. The assembly is very efficient and includes a panel and 3 mm laterally recessed plastic guide profiles. It is suitable for units with a side thickness of 19 mm, and cabinet edges must be covered accordingly. Any shelves must be extended by at least 3 mm and set back at least 20 mm from the front edge of the unit.

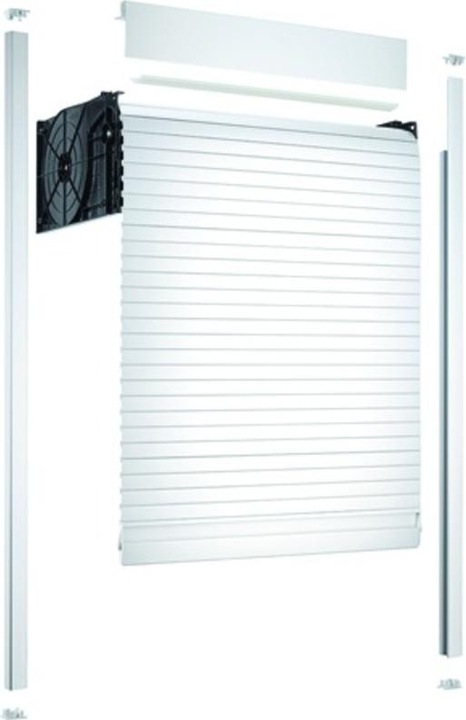

The complete set consists of:

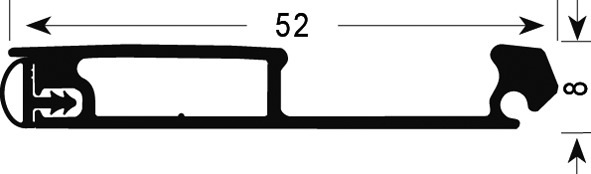

• 1 pre-assembled tambour door module C3-Box with a pre-adjusted tambour door compensation mechanism and a fitted, wound tambour door mat in Metallic-Line 25, made of plastic (PP) and aluminium coated, including a combination handle strip with a height of 52 mm.
• 1 front panel with a height of 73 mm, set back 4 mm in height, including a clip mounting profile for screwing on.

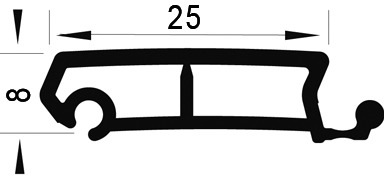

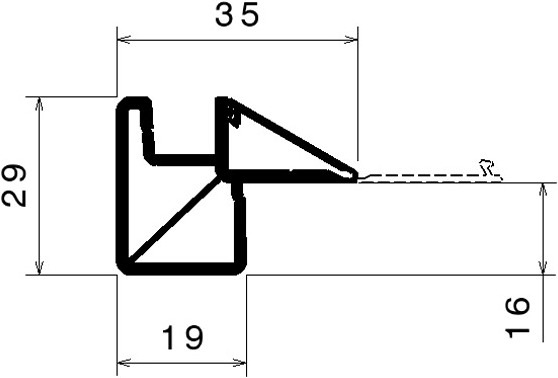

• 2 front guide profiles measuring 19/29 mm, made of plastic, for screwing to the carcase sides with concealed screws. The guide profile covers 16 mm of the front edge of the headboard. The rod width is 25 mm.
