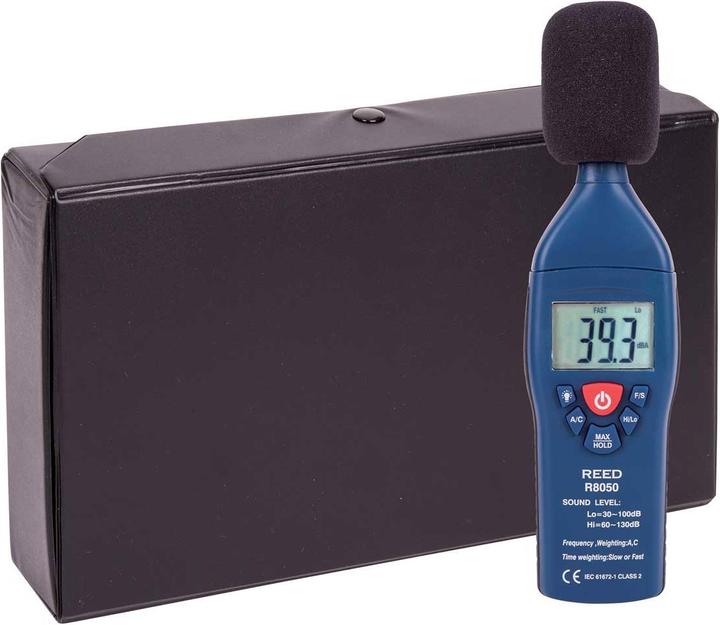

Reed Instruments REED R8050 Sound Level Meter

Reed R8050 Sound Level Meter

The Reed R8050 is a professional and precise sound level meter with a measuring range of 30 to 130 dB. This device meets ANSI and IEC Type 2 standards and features dual range measurement, fast and slow time weighting, data/max hold functions, and a tripod mount for long-term monitoring.

Features:

• High accuracy of ±1.4 dB meets Type 2 standards
• Dual range measurement (High and Low)
• A and C frequency weighting
• Fast and slow time weighting
• Easy-to-read backlit LCD display
• Data hold and max hold functions
• Tripod mount for long-term monitoring
• Low battery indicator and auto shut-off

Ideal Applications:

• Preventative maintenance
• Industrial machinery/equipment
• Construction sites
• Ensuring safe working conditions
• Public venues/concerts
• Code enforcement
• Traffic appliance noise testing

What's included:

• Microphone
• Windshield
• Ball battery
• Carrying case

Specifications:

• Measuring Ranges: 30-130 dB (Low: 30-100 dB, High: 60-130 dB)
• Dynamic Range: 70 dB (in each range)
• Accuracy: ±1.4 dB
• Resolution: 0.1 dB
• Response Time: 500 ms
• Frequency Range: 31.5 Hz to 8 kHz
• Frequency Weighting: A, C
• Time Weighting: Fast/Slow (125 ms and 1 s)
• Microphone: 0.5" (12.7 mm) electret condenser
• Display: 4-digit LCD
• Backlit Display: Yes
• Data Hold: Yes
• Max: Yes
• Alarm Indicators: Over (visual on-screen)
• Auto Shut-off: Yes (after 15 mins)
• Tripod Mountable: Yes
• Low Battery Indicator: Yes
• Power Supply: 9V battery
• Battery Life: Approx. 50 hours
• Product Certifications: CE, IEC 61672-1 Class 2, ANSI S1.4-1983
• Operating Temperature: 32 to 104°F (0 to 40°C)
• Storage Temperature: 14 to 140°F (-10 to 60°C)
• Operating Humidity: 10-90%
• Dimensions: 8.3 x 2.2 x 1.3" (210 x 55 x 32 mm)
• Weight: 8.1 oz (230 g).
