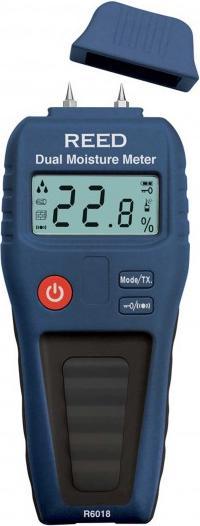

Reed Instruments REED R6018 dual moisture meter

Reed R6018 dual moisture meter

The Reed R6018 dual moisture meter is designed for moisture determination through measuring pins or contactless methods. This dual function moisture meter can detect moisture in wood and building materials by using pins or by running the instrument over the surface area, which is a non-destructive method. The R6018 features icons that indicate low, medium, or high levels of moisture, along with an audible alert that increases in frequency as the detected moisture level rises.

Features:

• Pin and pinless functions detect moisture in wood and building materials such as sheet rock, cardboard, plaster, concrete, and mortar.
• Pinless measurement depth up to 1 inch (25mm).
• Classifies moisture status as low, medium, and high.
• Audible alert and data hold functions.
• Built-in measurement verification and battery check.
• Low battery indicator and auto shut-off.
• Replaceable pins.

Ideal applications for the Reed R6018 include construction and building projects, remediation and restoration, and woodworking.

What's included with the Reed R6018 dual moisture meter:

• Pins
• Protective cap
• Battery

Specifications:

• Measuring Ranges:
• Pin Mode: 5 to 50% (wood); 1.5 to 33% (building materials)
• Pinless Mode: 0 to 99.9% (wood and building materials)
• Depth Detection:
• Pin mode: 0.3 inches (8mm)
• Pinless mode: up to 1 inch (25mm)
• Accuracy:
• Pin Mode: ±(3% + 5 dgt.)
• Resolution: 0.1%
• Sensor Type: Dual function (contact pins/pinless)
• Display: LCD display
• Data Hold: Yes
• Audible Alert Indicator: Audible tone (increased intensity as moisture level rises)
• Replaceable Pins: Yes
• Auto Shut-off: Yes (after 2 minutes)
• Low Battery Indicator: Yes
• Power Supply: 9V battery
• Product Certifications: CE
• Operating Temperature: 41 to 113°F (5 to 45°C)
• Storage Temperature: 32 to 122°F (0 to 50°C)
• Operating Humidity Range: 0 to 80%
• Dimensions: 6.7 x 2.6 x 1.2 inches (170 x 65 x 30mm)
• Weight: 4.2 oz (120g).
