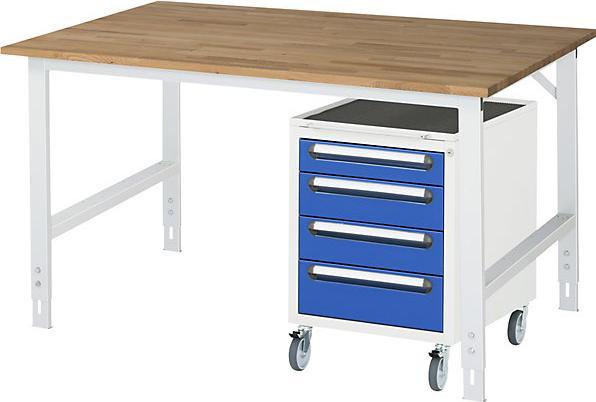

RAU Workbench Series Tom K Model 10 Workbench Height-adjustable Width 1500 mm

Work table with drawer cabinet and mobile container with 4 drawers (1 x 90 mm, 2 x 120 mm, 1 x 140 mm), dimensions W x D 1500 x 800 mm, with a board thickness of 25 mm. Affordable complete set consisting of table and drawer container. Height adjustable, stable, load-bearing, and flexible. Free positioning of the understructures. Tables are expandable with system structures and accessories.

The 4-legged frame consists of two pairs of frame legs made of profile steel tube (60 x 30 x 2 mm) including depth braces (top and bottom). The frame legs are equipped with an end element and height adjustment. Cross braces made of profile steel tube (50 x 25 x 2 mm) are mounted above under the work surface (front and back). Stiffening crossbeams at the back (left and right) connect the frame leg pair with the rear cross brace. The frame legs are prepared for the attachment of a wheel set.

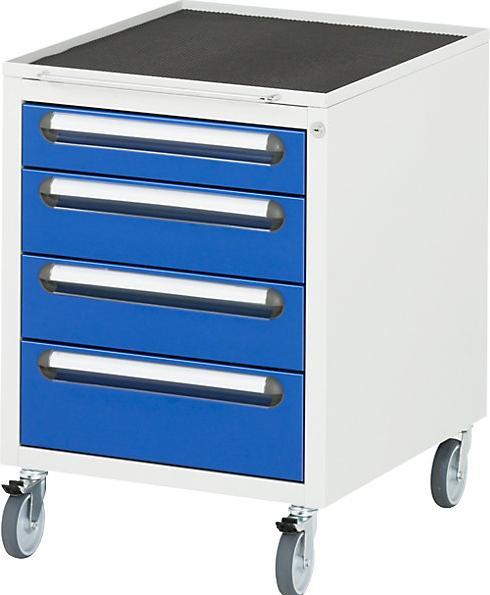

The mobile container has dimensions W x D x H 480 x 600 x 690 mm and features 4 drawers (1 x 90 mm, 2 x 120 mm, 1 x 150 mm). The interior dimensions of the drawer are W x D 390 x 560 mm, with a load capacity of 35 kg and a pull-out of 90%. The usable height of the drawer corresponds to the front height minus 15 mm. The drawer tray is completely closed for optimal use of drawer partition sets. A continuous, partially integrated handle strip is present (including labeling strip). The central locking is done via a pin cylinder lock with 2 keys.

The cabinet has a metal top with a 4-sided rolling edge and anti-slip mat, height 20 mm. A sliding handle is attached to the front of the metal top (protruding 50 mm). The mobile container is equipped with 4 swivel casters, 2 of which have brakes. The wheel diameter is 100 mm, the construction height is 125 mm, with a running surface made of thermoplastic rubber (gray, non-marking, 85° Shore) and a wheel body made of polypropylene. The swivel casters with brakes are mounted at the front (left and right). The total load capacity is a maximum of 450 kg.

The table is delivered disassembled and is easy to assemble.
