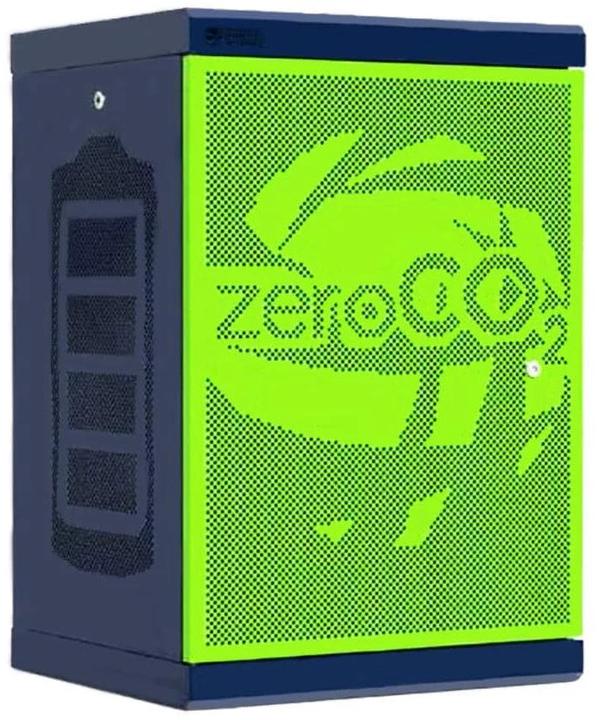

Pylontech ZeroCO2 battery cabinet 016U for US2000C/US300C/US5000/UP2500 batteries
Currently out of stock
Product details
The ZeroCO2 16U battery cabinet can be used to store and accommodate Pylontech battery modules from the US2000C, US3000C, US5000, and UP2500 series. The stable structure of the housing, made of painted and galvanized steel with ventilation grilles, ensures safe storage of the battery modules.
The enclosure with pre-punched profiles has openings at the bottom and top to facilitate easy cable entry.
Features
- One-piece battery cabinet made of painted and galvanized steel with ventilation grilles
- Embossed surface (polyester powder coating)
- Door with quarter-turn lock
- Removable blind side panels with quarter-turn fastener
- 19" steel front rails
Technical features
- Suitable for
- Up to 8x US2000C Pylontech LiFePO4 batteries
- Up to 5x US3000C Pylontech LiFePO4 batteries
- Up to 4x US5000 Pylontech LiFePO4 batteries
- Up to 5x UP2500 Pylontech LiFePO4 batteries
- Protection class: IP20
- Dimensions: 581 x 510 x 858 mm
- Weight: 31 kg
- Maximum capacity (weight): 189 kg
Scope of delivery:
1x ZeroCO2 battery cabinet 16U
1x earthing kit
1x fixing kit for adjustable feet.
Item number | 34879684 |
Manufacturer | Pylontech |
Category | Solar energy equipment |
Manufacturer no. | ZeroCO2 16U |
Release date | 2.2.2024 |
Material group | Metal |
Material | Painted and galvanised steel |
Protection type (IP code) | IP20 |
Cable length | 5.81 m |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 581 cm |
Width | 51 cm |
Height | 85.80 cm |
Weight | 31000 g |
Specifications may include unverified machine translations.
