Radial turning device:
This device is mounted on the cross slide instead of the turning tool holder. It is designed for producing convex and concave shapes, turning radii, or 3/4 spheres up to a maximum of 32 mm. The height-adjustable tool holder allows for an adjustable turning tool tip of 30 to 45 mm via the cross slide, making it compatible with FD 150/E, PD 250/E, PD 400, and older PROXXON lathes.

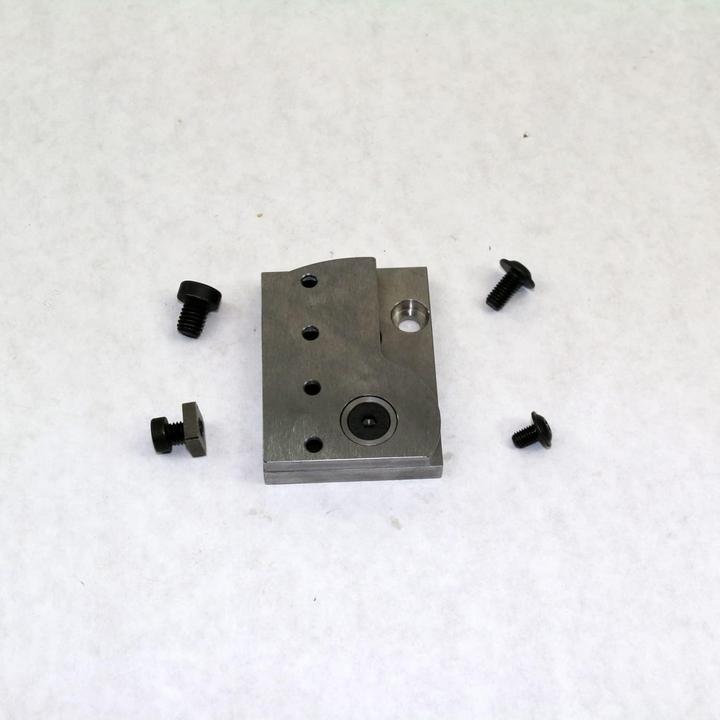

Dimensions: Base plate 67 x 50 mm, height 55 mm.

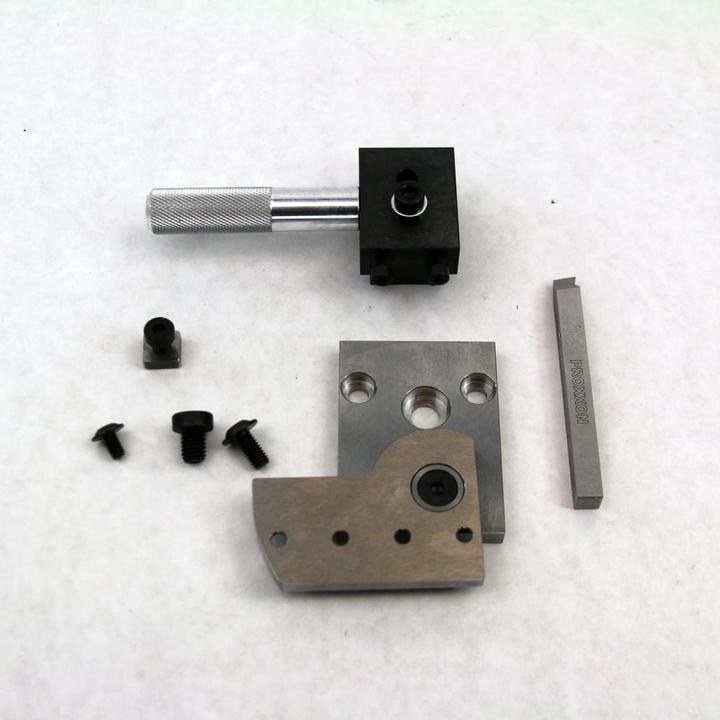

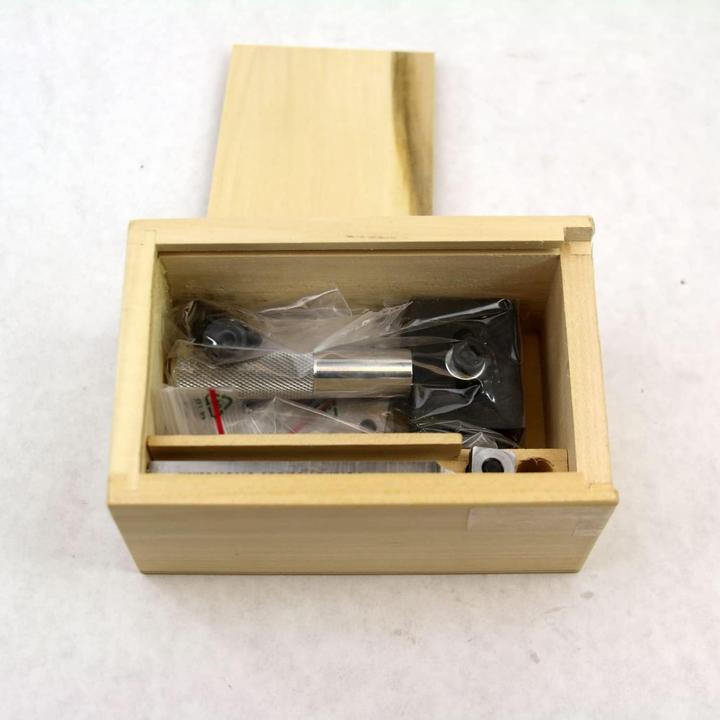

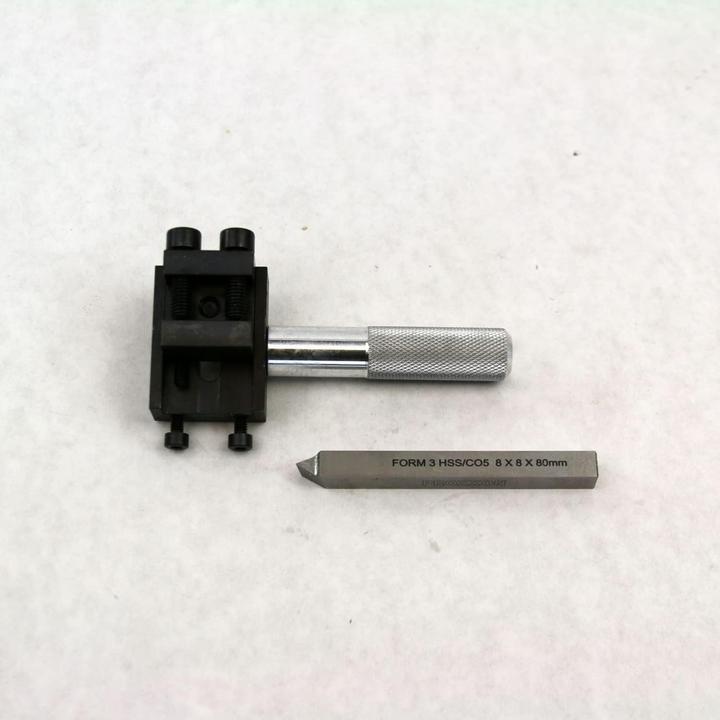

Complete with pointing lathe steel 8 x 8 x 80 mm, and comes in a wooden box with a sliding lid.
Item number | 6277630 |
Manufacturer | Proxxon |
Category | Lathes |
Manufacturer no. | 24 062 |
Release date | 10.4.2017 |
Sales rank in Category Lathes | 22 of 1350 |
External links |
Max. turning diameter | 80 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 67 mm |
Width | 50 mm |
Height | 62 mm |
Length | 10.40 cm |
Width | 6.90 cm |
Height | 14.10 cm |
Weight | 770 g |
