Product details

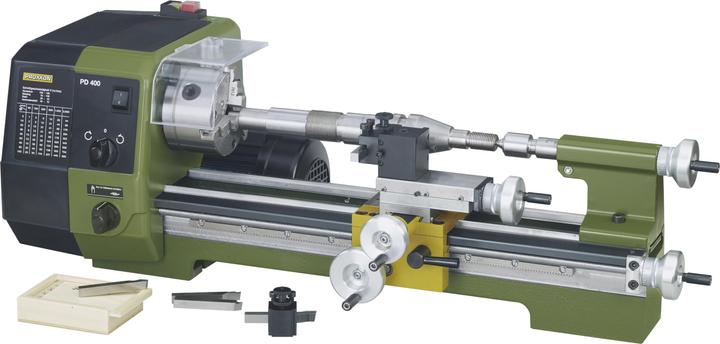

Center distance 400 mm. Center height 85 mm. Center height above the carriage 58 mm. Suitable for machining steel, brass, aluminum, and plastic. For facing, turning, taper turning, and threading. With extensive system accessories, you can also drill, mill, and groove. Machine bed: Made of high-quality cast iron, cross-ribbed with a wide, ground prism guide. For vibration-free operation even under high loads. Rear side with flange and threaded holes for mounting the drilling and milling unit. Covered lead screw. Headstock: Made of aluminum die-cast. Oversized main spindle with two adjustable tapered roller bearings and MK 3 socket on the chuck side. Spindle bore 20.5 mm. Runout accuracy without chuck 1/100 mm. Rotary switch for activating the automatic feed (optional 0.07 and 0.14 mm/rev). Lead and feed screw with trapezoidal thread (12 x 1.5 mm). Tailstock: Made of aluminum die-cast. Quill Ø 24 mm, extendable up to 40 mm. With mm scale. Includes a live center MK 2 and a 10 mm keyless chuck. Carriage: Bed slide made of zinc die-cast. Cross slide (adjustable travel 85 mm) and top slide (adjustable travel 52 mm) made of steel. Top slide swivels for taper turning (degree scale up to 45° available). With multiple tool holder and two tool holder elements for quick change and easy height adjustment. For turning tools 10 x 10 mm. Drive: Powerful capacitor motor for two speeds and an additional three-stage belt gearbox. Spindle speeds at stage 1: 80 - 330 - 1,400/min. At stage 2: 160 - 660 and 2,800/min. Chuck: High-quality 3-jaw chuck according to DIN 6386, class 1 (runout tolerance 0.04 mm). Clamping range through reversible jaws 3 - 100 mm. Includes chuck guard with safety shutdown. Handwheels: Made of aluminum, with a scale ring adjustable to 0. For cross slide and top slide: 1 division = 0.025 mm. 1 rev = 1 mm. For tailstock and lead screw: 1 division.
