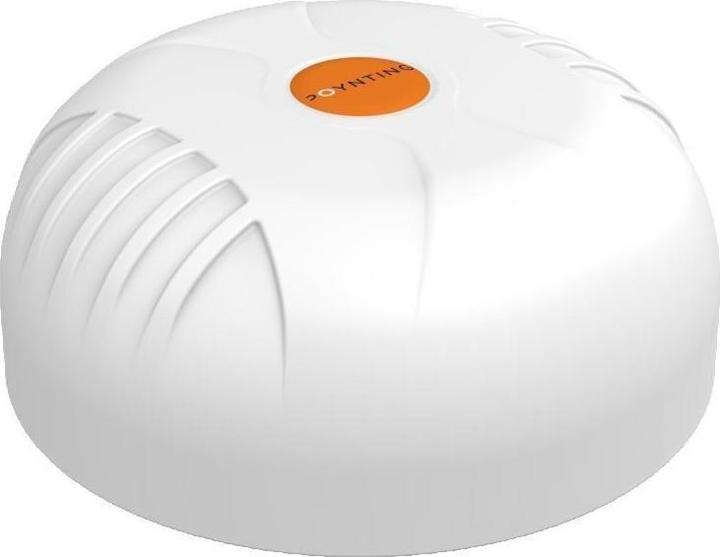

Poynting Antennas - 5G/LTE - Automotive/Marine - A-MIMO-0004-V1-04-W - white - SMA (M) - 3.56dBi - 2M SM

Poynting A-MIMO-0004-V1-04-W 4x4 MIMO 4G/5G/LTE 4-in-1 Transport/Automotive IoT Antenna, IP69 Outdoor, 6dBi max. 617 - 6000MHz, 2m SMA(m), white

The MIMO-4-4 is a high-performance 4-in-1 multi-frequency antenna featuring four cellular antennas housed in a single enclosure. The four cellular MIMO antennas provide broadband coverage from 617 to 6000 MHz, thus supporting the current LTE/4G and 5G bands for a future-proof implementation. The ultra-broadband performance of the cellular antennas allows for use across various operators and technologies, and is ready for future mobile technologies up to 6 GHz for 5G applications.

The MIMO-4-4 outperforms most competitors, as special attention was given to its development as a high-performance antenna. The radiation patterns of all radiating elements offer an excellent balance between omnidirectionality, diversity of patterns, and good radiation characteristics at the desired height. This is an important criterion for the transport and marine market, for which the antenna was specifically designed. Main applications include commercial and industrial vehicles, shipping, M2M, and other IoT systems that utilize a wide range of radio technologies while being future-proof across the broad frequency band.

Delivery includes:

• Antenna in white
• M4 x 10mm flat head screws made of stainless steel
• 37mm and 85mm threaded studs
• 55mm internal threaded stud
• Magnetic foot adapter
• Mast and wall mounting bracket
• Locknut
• Stud/adhesive mounting foam gasket
• Grip extensions
• SMA(F)-RP-SMA(M) adapter
• Pipe clamp
• Screws for wall mounting
• Magnetic mount foam gasket

Highlights:

• Ultra-broadband operation from 617 to 6000 MHz for cellular use
• Features 4 x...
