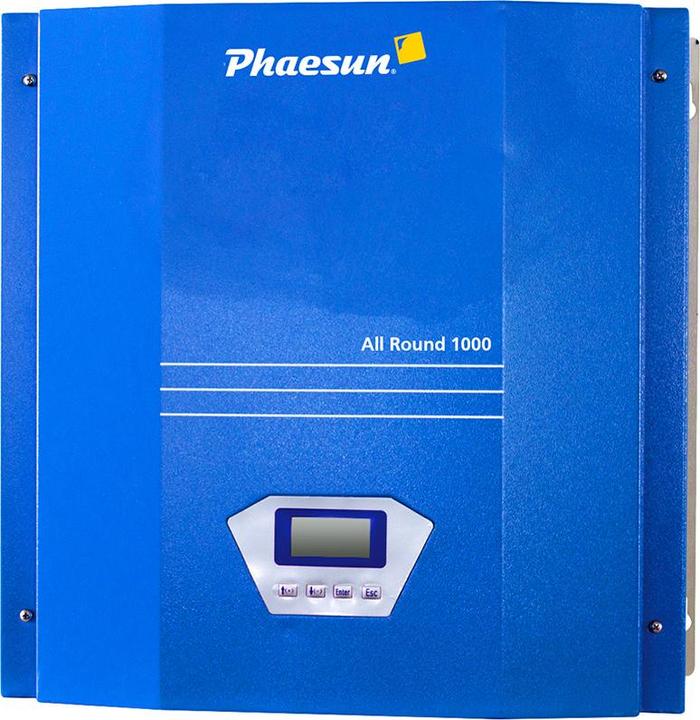

Phaesun Hybrid charge controller All Round 1000-24 V

The advanced hybrid charge controller All Round 1000_24 from Phaesun is specifically designed for off-grid 24 VDC wind/solar hybrid systems.

The All Round series is particularly suitable for wind/solar street lighting and monitoring systems due to its numerous control options.

Technical specifications:

• For 24 VDC systems
• Max 42 A wind current (1000W)
• Max 12 A solar current (300W)
• 2 x DC output: max. 10 A total, 3 different modes

Features:

• Reliability: Intelligent, modular design, simple mechanics, versatile functions. By selecting high-quality components and adhering to strict production technology, the charge controller can operate reliably in relatively poor environments with a long lifespan.
• Continuously PWM regulated
• Voltage and current limiting charging mode: When the maximum battery voltage is reached, the controller switches to the voltage-limiting mode. If the voltage generated by the wind turbine exceeds the maximum voltage, the controller will brake the turbine.
• Each DC output has various control modes to choose from.

LCD display functions:
The intuitively operated LCD display provides status information and system parameters in numerical and graphical form. This includes: battery voltage, wind generator voltage and power, solar module voltage and power, charging current, output control modes, time control, light control options, day/night detection, charging status, under/over voltage of the battery, etc.
