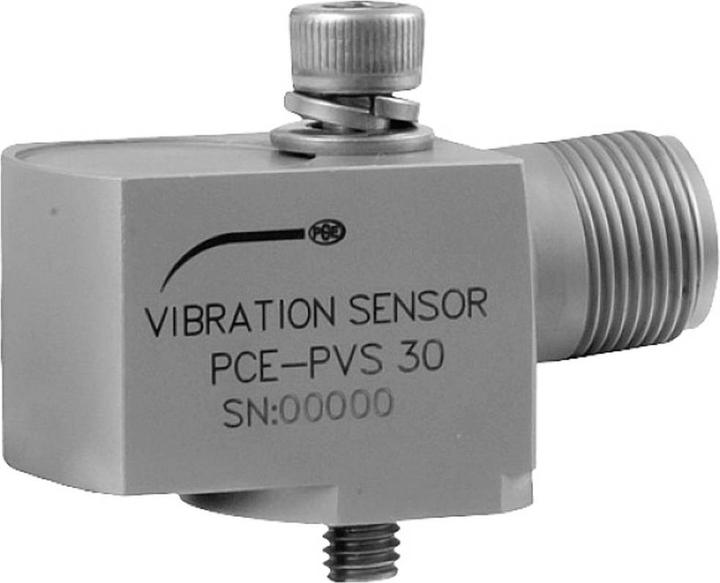

PCE Instruments Piezoelectric Vibration Sensor PCE-PVS 30

Manufacturer: PCE Instruments
Designation: PCE Instruments Piezoelectric Vibration Sensor PCE-PVS 30
Type: Measuring Devices
Country of Origin: CN

Vibration Measurement Range Min.: -12.7 mm/s
Vibration Measurement Range Max.: 12.7 mm/s
Protection Class (Device): IP65
Power Supply: 12 ... 24 V DC in current loop
Dimensions (L x W x H): 23 x 23 x 25 mm

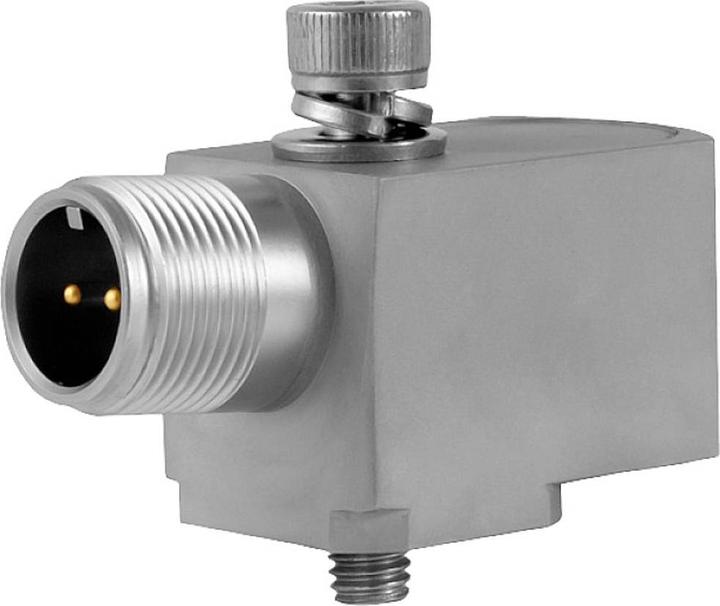

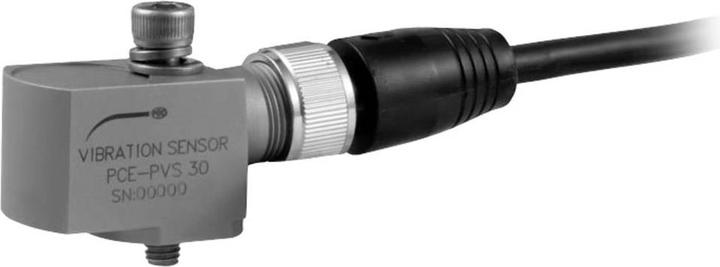

The piezoelectric vibration sensor is designed for continuous monitoring of vibration velocity. The sensor is available in various versions. Depending on the type of sensor, distinctions are made between design and measurement range. The sensor measures vibration velocity in the range of ± 12.7 mm/s or ± 25.4 mm/s within a frequency range of 3 Hz to 1500 kHz. The measured vibration velocity is output as a 4 ... 20 mA process current. The vibration sensor is connected in a current loop via a MIL-C-5015 connector to a control unit or process display. Depending on the design, the connection socket is mounted either vertically or horizontally on the sensor. The sensor can be operated with a voltage of 12 ... 24 V DC.

Highlights:

• Horizontal or vertical mounting
• Process signal output
• MIL-C-5015 connection
• M6 process connection
• Various measurement ranges
• Robust construction

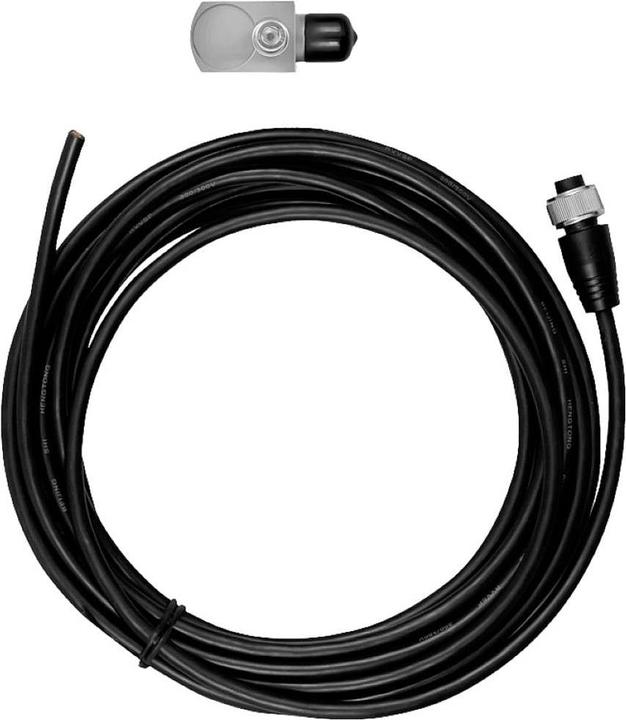

Scope of Delivery:
1 x Piezoelectric Vibration Sensor PCE-PVS 30
1 x MIL-C 5015 plug with 5 m cable
1 x Operating manual.
