PCE Instruments Vibration meter

PCE Instruments Vibration Tester PCE-VT 1100

Manufacturer: PCE Instruments
Designation: PCE Instruments Vibration Tester PCE-VT 1100
Type: Measuring Devices
Country of Origin: CN
Acceleration Measurement Range Min.: 0.01 m/s²
Acceleration Measurement Range Max.: 199.9 m/s²
Vibration Measurement Range Min.: 0.01 mm/s rms
Vibration Measurement Range Max.: 199.9 mm/s rms
Displacement Measurement Range Min.: 0.001 mm p-p
Displacement Measurement Range Max.: 1.999 mm p-p
Operating Conditions: 0 ... 40 °C, 0 ... 84 % r. H.
Storage Conditions: 0 ... 40 °C, 0 ... 84 % r. H.
Dimensions (L x W x H): 155 x 24 x 18.7 mm
Weight: 40 g

The vibration tester is used as a handheld device for the individual assessment of vibrations in machines and systems. With this vibration tester, the current condition can be easily determined on-site. Thus, appropriate changes can be made directly after the measurement. The new condition can then also be assessed. Therefore, the vibration tester serves as a measuring device for relative measurements on various machines. The vibration tester is essential for preventive maintenance of production machines. It is used for quick measurement of imbalance as well as for checking the condition of bearings and gears. The vibration tester is also frequently used for assessing the condition of smaller electric motors.

Highlights:

• Measures speed, displacement, acceleration
• Holds the measurement value after each measurement
• Compact and battery-operated
• Wide frequency range
• Automatic shut-off after 20 seconds
• Battery level indicator

Scope of Delivery:
1 x Vibration Tester PCE-VT 1100
1 x PCE-VT-NF-10 Standard Probe (Length 10 mm)
2 x Batteries

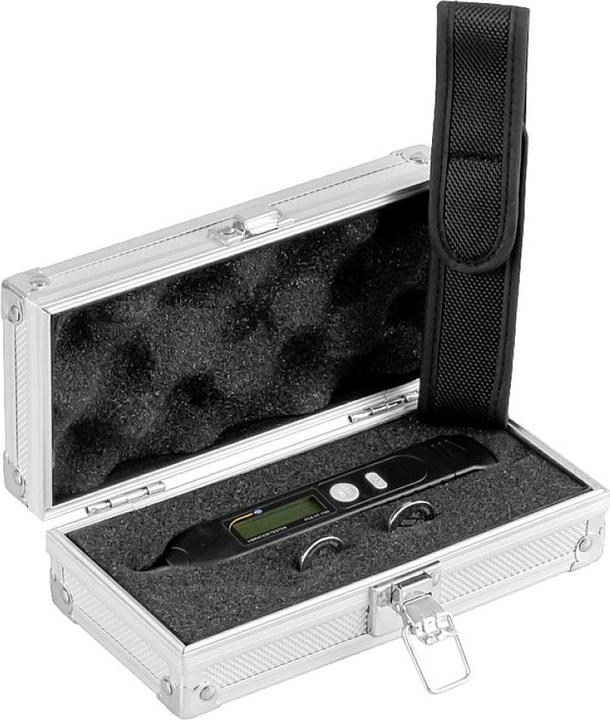

1 x Carrying Case
1 x Storage Box
1 x User Manual
EAN: 4250348714091.
