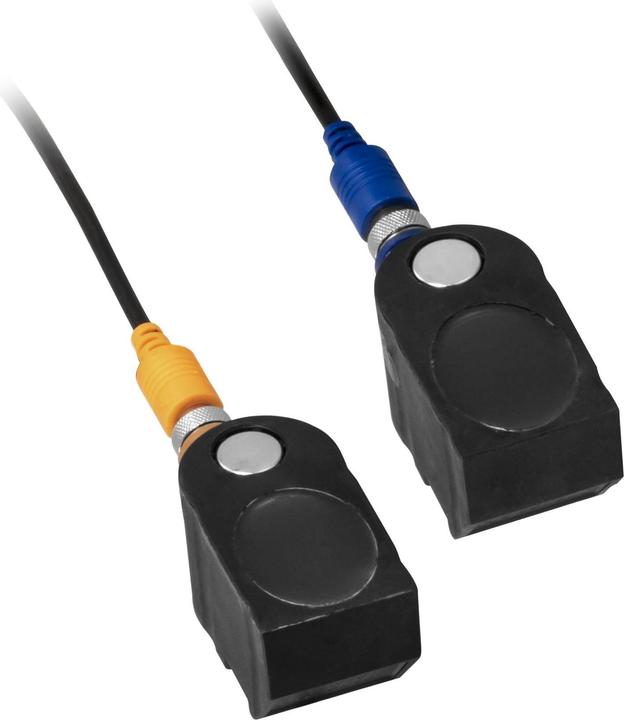

PCE Instruments Ultrasonic sensor PCE-TDS 200+ SM Operating voltage (range): 5V Measuring range: 0 -

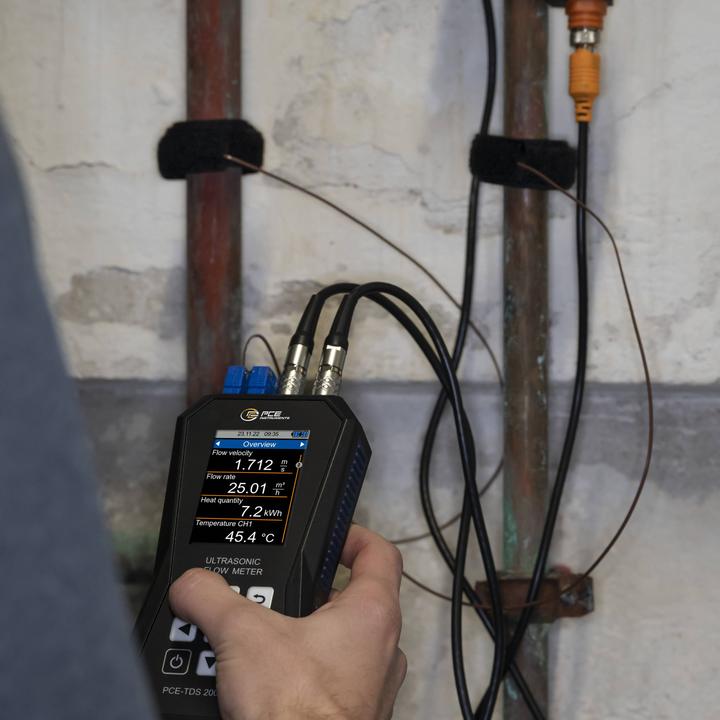

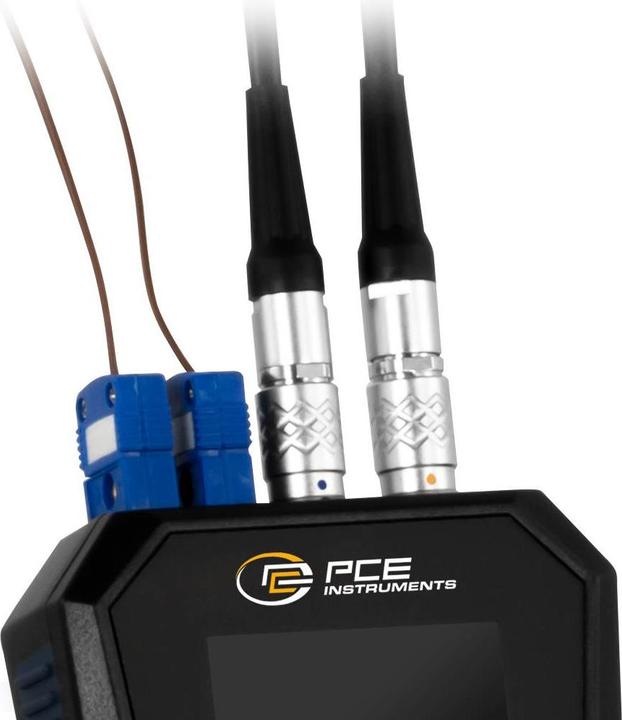

The ultrasonic flow meter has a measurement range of ±32 m/s. It offers an accuracy of ±1.5% of the measured value for pipe diameters of DN ≥50 and ±3.5% for smaller diameters. During a measurement, it is possible to record the values using the data logger function. Start and stop conditions, as well as the storage interval, can be set from 1 second to 12 hours. Each storage point contains all measured values at once. The measurements are stored in the built-in 32 GB memory, which can hold up to 10 million data points. With the optional software, recorded measurements can be retrieved. For analysis, the data can be displayed in both tabular and graphical formats. The measured values can also be exported in .csv file format for further processing. Alternatively, a PDF report can be generated through the software. For easier operation, the device can be configured via the software. A live view of the measurements is also possible. To determine the amount of heat, two thermocouples are additionally required, which are available with the PCE-TDS 200+. These thermocouples are connected to the supply and return lines of a piping system. Based on the temperature difference and the measured flow rate, the device can calculate the amount of heat.
