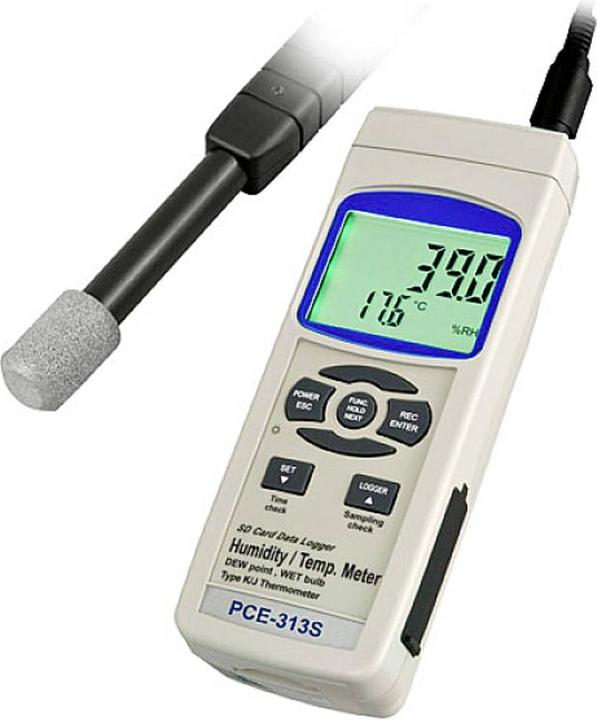

PCE Instruments Thermo-Hygrometer mit Sinterkappe

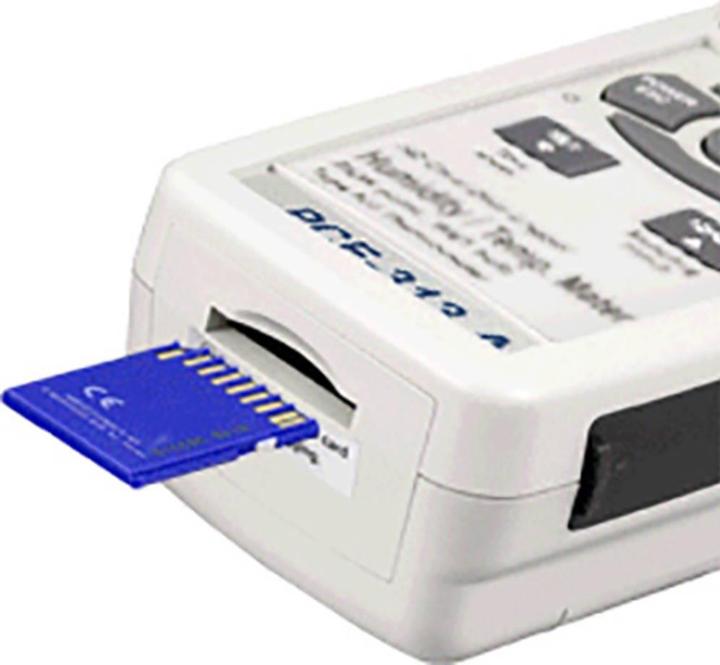

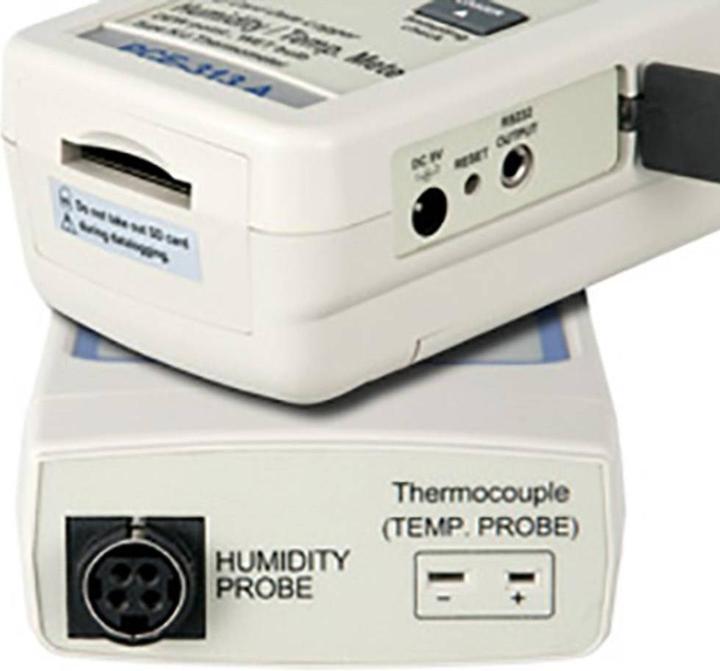

Data logger for relative humidity and temperature with internal data storage via SD card (1 to 16 GB) and data interface for online transmission. It can operate on both battery and mains power. An additional K-type thermocouple connection allows for the measurement of wall temperature using an optional surface sensor.

This data logger is designed for professional use in climate measurement technology. It measures not only relative humidity but also room temperature. The internal data storage allows for recording humidity and temperature measurements at a freely selectable measurement rate in direct mode or as a long-term logger in data logger mode. The data logger can be programmed in advance via the keyboard and then used on-site for long-term recordings without the need for constant presence. For long-term recordings, it is advisable to operate the data logger with a power supply (optional).

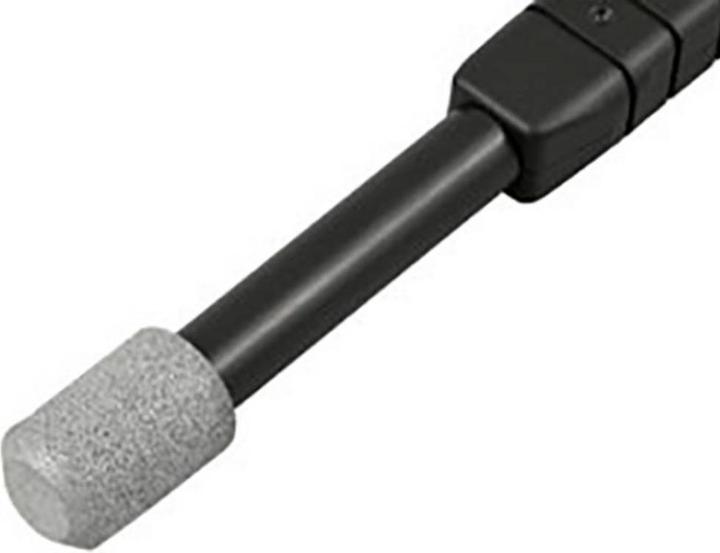

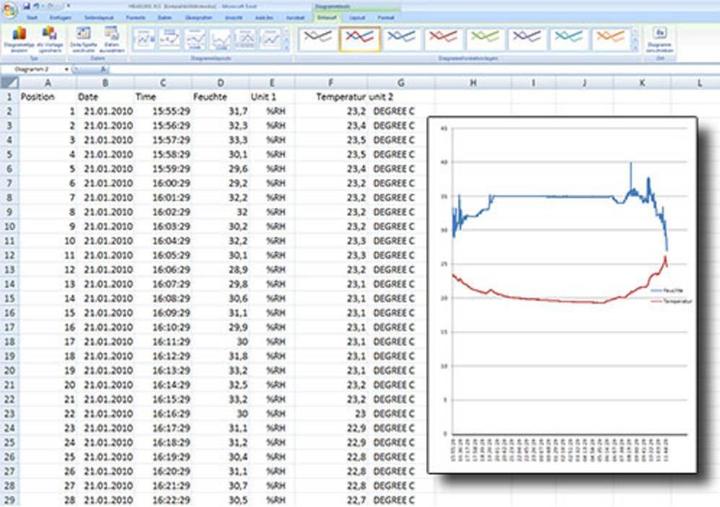

The values recorded in the data logger function can be transferred to a PC and evaluated (as an .xls file on the SD card). Additionally, the data columns can be checked for outliers or graphs can be created in Excel. For use in extremely humid environments, this data logger is equipped with a sintered cap. This exclusive in-house production ensures smooth operation under extreme conditions without significant measurement delays. The sintered cap can be unscrewed for inspection, cleaning, and calibration with a calibration set.

A calibration set is also available for the data logger. All humidity sensors tend to drift over time, including this model.
