PCE Instruments Sound level meter

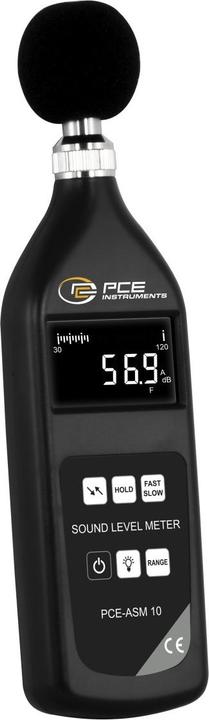

The PCE Instruments Sound Level Meter PCE-ASM 10 is a precise and versatile measuring device designed for capturing and evaluating sound levels in various environments. With a measurement range of 20 dB to 130 dB and a resolution of 0.1 dB, it allows for detailed analysis of noise levels. The device offers various measurement functions, including HOLD and MAX, to enhance user-friendliness. The frequency weighting can be selected between A, C, and Z, allowing for flexible adaptation to different measurement requirements. The backlit LCD display ensures clear readability of measurement values, even in low light conditions. The sound meter is equipped with a condenser microphone and provides both analog outputs and an RS232 interface for data transmission. It complies with the standards IEC 61672-1 (Class II) and is suitable for use in a wide temperature and humidity range.

Three manual measurement ranges: 20 ... 90 dB, 40 ... 110 dB, 60 ... 130 dB
Frequency range from 20 to 8000 Hz
Choice of time weighting between fast (125 ms) and slow (1 s)
Backlit LCD display for better visibility
Meets international standards such as IEC 61672-1 (Class II).
