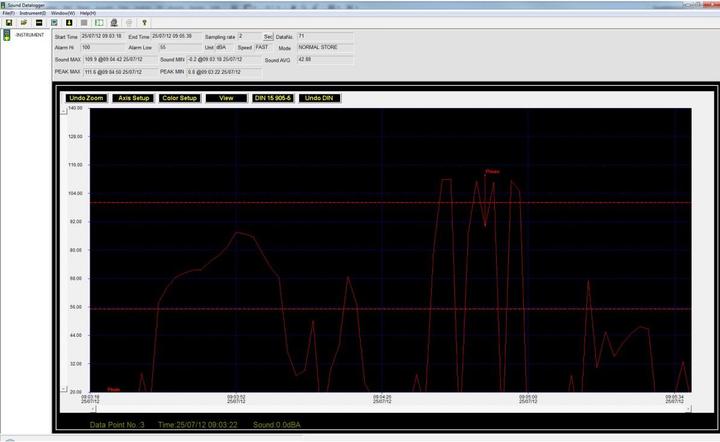

USB Sound Level Meter PCE-SDL 1 Mini Sound Level Meter Class II with data storage for 129,920 records, USB interface, transmission and evaluation software, compact design. The USB Sound Level Meter PCE-SDL 1 measures noise levels from 30 to 130 dB and stores them internally. This compact and robust USB sound level meter in mini format, with a large memory (up to a maximum of 129,920 records), is primarily designed for long-term recording in various fields. The device acts as an independent logger, recording all sound levels over the desired period. If desired, all values can be transferred to a laptop or PC. The storage can either be triggered directly on the PC or you can let the USB sound level meter record on-site with a delay. After transferring the values to the PC, they can be analyzed there. Additionally, the included software generates a graph for trend display. The software also allows for the setting of alarm thresholds. Exceeding or falling below these thresholds is indicated by a flashing LED. The internal real-time clock with date enables the user to accurately associate events. A special feature is the power supply of this USB sound level meter via a long-lasting internal 3.6 V lithium battery. Depending on usage, the battery life is approximately one year. The tripod connection and wall mount allow the USB sound level meter to record data over an extended period.
Max. Measuring range sound level | 130 dB |
Min. measuring range Sound level | 30 dB |
Item number | 34249587 |
Manufacturer | PCE Instruments |
Category | Sound level meter |
Manufacturer no. | PCE-SDL 1 |
Release date | 17.5.2023 |
Max. Measuring range sound level | 130 dB |
Min. measuring range Sound level | 30 dB |
Max. Measuring frequency | 8000 Hz |
Min. measuring frequency | 31.50 Hz |
Calibrated according to | Factory standard (without certificate) |
Power supply | Battery operated |
Battery type | Lithium |
Battery voltage | 3.6 V |
Number of batteries | 1 |
Battery | Battery |
Battery category | Device batteries |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x battery, 1 x instructions, 1 x PCE-SDL 1 mini sound level data logger, 1 x wall bracket, 1 x wind noise suppressor, 1 x Windows®-ready software (English language) |
Length | 14.50 cm |
Width | 2.80 cm |
Height | 2.50 cm |
Weight | 70 g |
