PCE Instruments Rauhigkeitsmessgerät

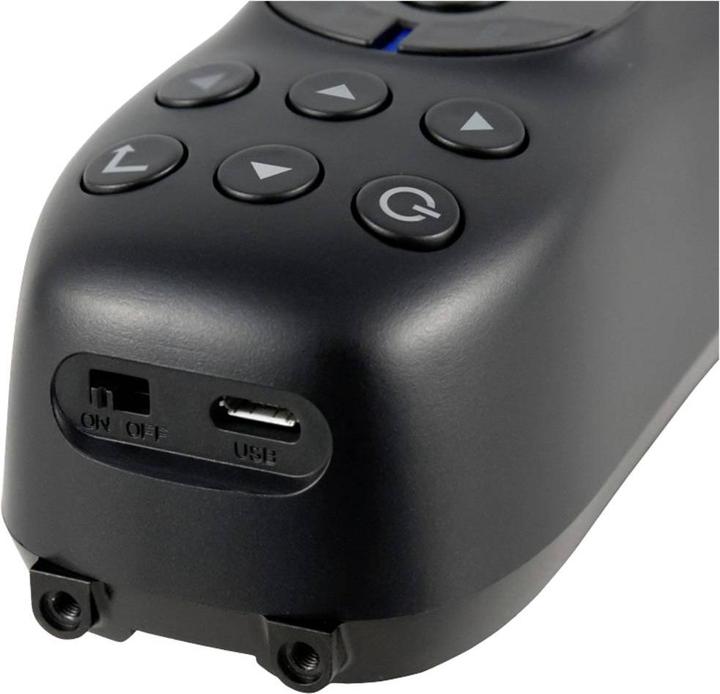

Roughness measuring device with a large graphic OLED display and rechargeable battery. It stores up to 20 measurement profiles and offers a wide range of parameters. The Micro-USB interface is used for charging the battery and reading the memory.

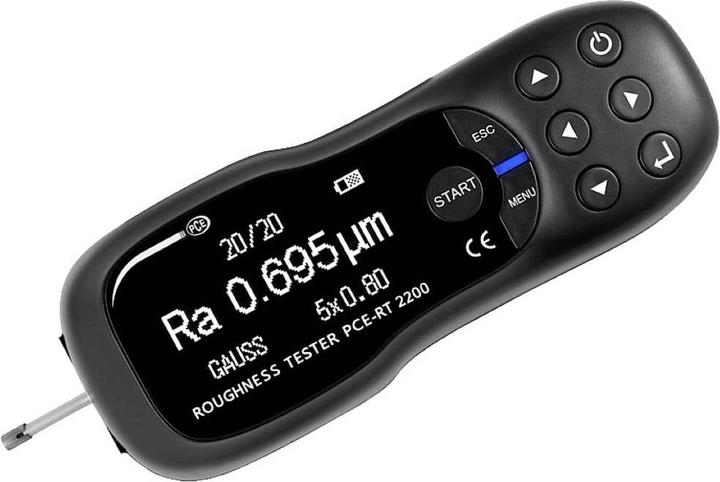

This portable and easy-to-use roughness measuring device, with its large OLED display, is particularly suitable for quick and accurate measurements in the workshop or laboratory. This device utilizes a DSP chip for high-speed control and data processing with low energy consumption.

You have a wide selection of measurement parameters: Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry (JIS), Rz (JIS), RP (ASME), Rpm (ASME), Rv (ASME), R3z, R3zmax, Rz1max, Rmr (c), Rdc, Rmr. The measurements are automatically stored in the device's internal memory. The saved data can then be transferred to a PC via the Micro-USB interface for analysis.

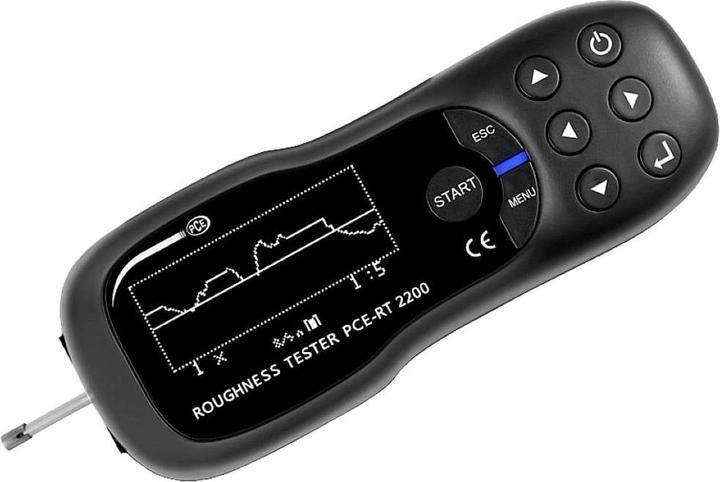

It is also possible to display the data on the OLED screen after a measurement. Even the wave profile can be shown on the display. Often, the contact area of the test specimen is too small for a roughness measuring device to be positioned properly. For such cases, a positioning adapter is included in the package. Thus, the roughness measuring device also allows for measurements on small samples.
