PCE Instruments Ohmmeter

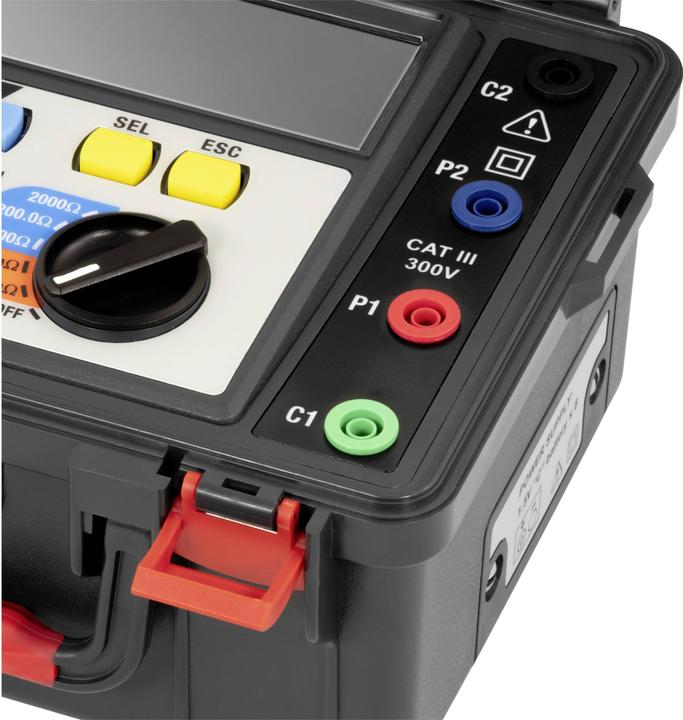

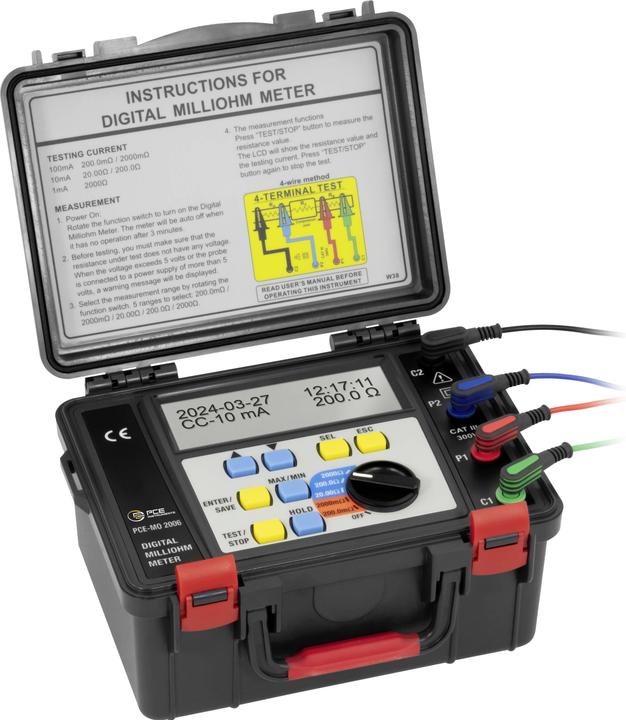

The milliohm meter is a compact and precise measuring device with 5 selectable scale ranges for measuring resistances from 0 mΩ to 2000 Ω. The use of the 4-wire measurement method allows for accurate current flow through the test object while simultaneously measuring the voltage across it. Separate connections for current and voltage minimize errors and enable precise resistance measurements. Equipped with an integrated fuse (200 mA/600 V) and three test currents, it offers reliable protection and flexibility. The milliohm meter complies with safety standard CAT III 300V. The device features internal memory that can store up to 200 values, which can also be recalled via the display. Additionally, the MAX/MIN/HOLD functions allow users to view important values. The milliohm meter has a 5.1-inch LCD display with backlighting. Its robust housing (IP65 protection class when the lid is closed) allows for use in harsh conditions, and the low battery indicator ensures the reliability of the device. The milliohm meter is a compact measuring instrument for precise resistance measurements across various industries.
