PCE Instruments Industrie-Endoskop

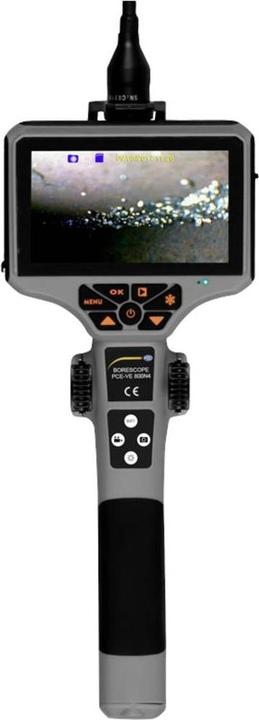

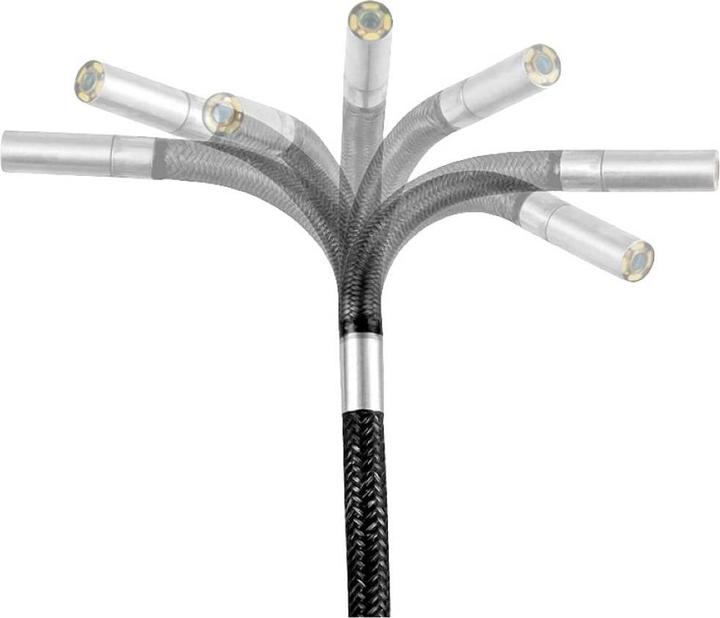

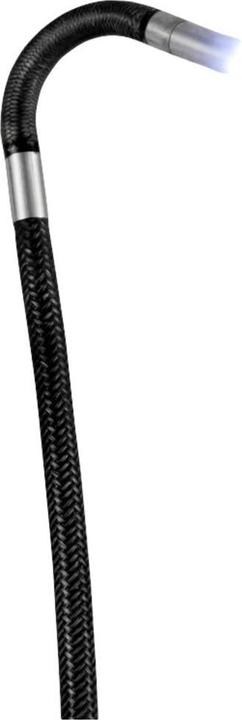

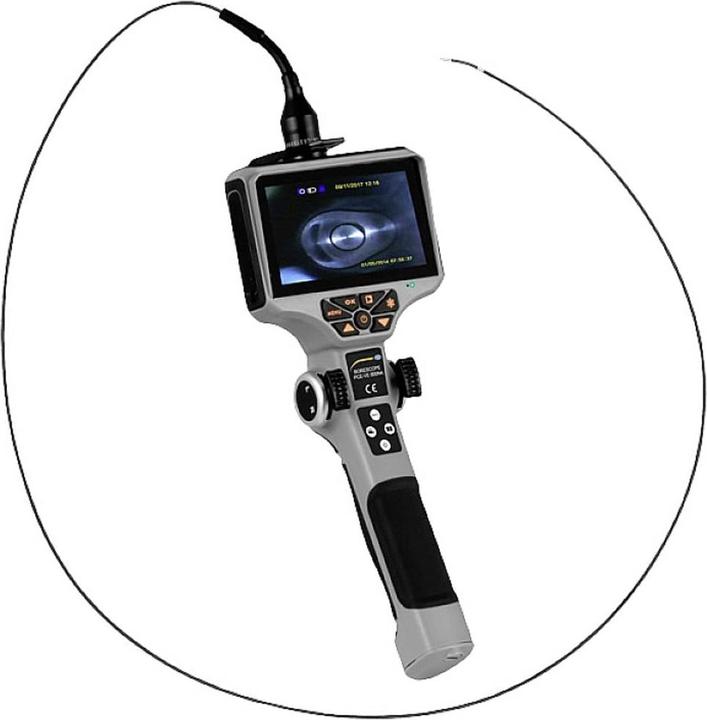

Industrial endoscope with a diameter of 2 mm for inspecting machine parts and cavities. It features dimmable LED lighting, a 4-way camera head, data storage, and an IP58 protection rating. The endoscope has a 1.2 m long cable. With a diameter of only 2 mm, it can view cavities with minimal access. The camera head is freely movable in four directions. Particularly in the maintenance of engines, turbines, etc., the high-resolution display provides a good insight into cavities and hard-to-reach areas. The movable camera has a resolution of 400 x 400 pixels. The field of view is 80°, allowing for large images to be captured at relatively short distances from the object being inspected. All recordings can be saved as images or videos, which helps accurately document damage to components. The focus distance of the small camera ranges from 5 to 50 mm. The industrial endoscope is powered by a Li-Ion battery and can also be used optionally with a power adapter. The protection rating of the camera cable is IP58, enabling the endoscope to be used in challenging and harsh industrial environments.

General information about the industrial endoscope: It was developed in 1806 by the German physician Philipp Bozzini for medical diagnostics. The first version was rigid and used a candle as a light source. Over the years, the industrial endoscope has evolved through continuous advancements into an important component in many different fields.
