PCE Instruments Industrie - Endoskop

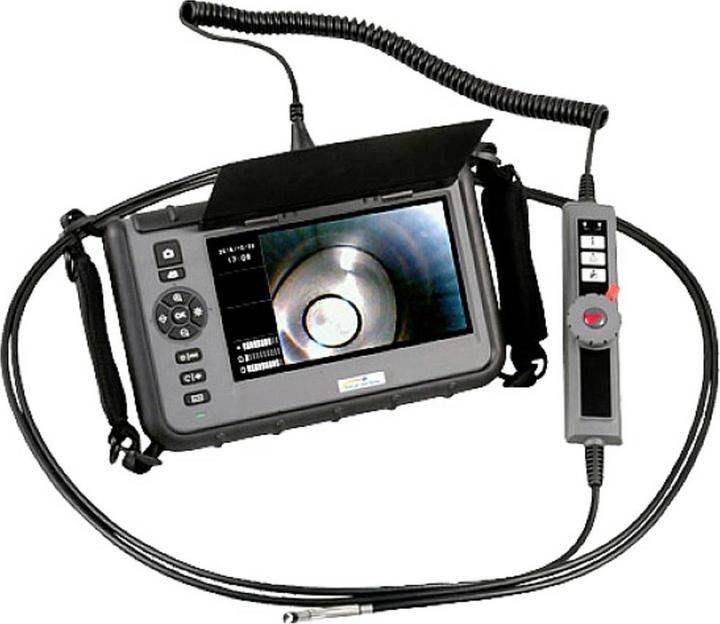

Various cables can be connected to the endoscope, allowing for image and video recordings. It features a large 7-inch LC display for precise viewing, recording on an SD card, and images can be rotated 360° (in 90° steps). Bright LEDs are located at the camera head, and the camera diameter is Ø 6 mm.

The PCE-VE 1036HR-F endoscope is a versatile inspection tool. A wide range of endoscope cables with different properties can be connected to it. A significant advantage of this endoscope is its large display, which provides the user with the best possible overview of the area being inspected due to its size and resolution.

The endoscope allows for the capture of images and videos, with videos also being recorded with audio. The clear resolution remains evident even when images are saved to the inserted SD card by pressing a button. When the SD card is read on a computer, the recorded images and videos are displayed clearly.

Since the recordings are stored on an external mass storage device, users can choose which SD card to insert into the endoscope. However, the maximum capacity should be 32 GB. An 8 GB memory card allows for the storage of over 60,000 images or more than 530 minutes of video material. The two-way optics is a significant advantage of the endoscope, especially in hard-to-reach places.

If control over the camera head is insufficient and images cannot be satisfactorily displayed on the screen, there is an option to rotate the images on the handheld device's display at a 90° angle. In addition to image rotation, various other functions can also be adjusted directly on the handheld device. This allows the endoscope to provide digital zoom and adjust the LED brightness of the camera head.
