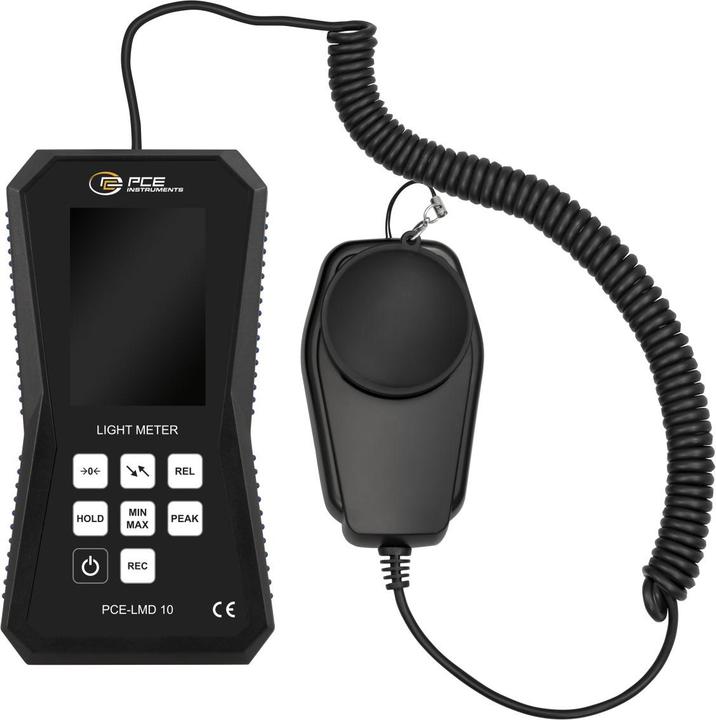

PCE Instruments Industrial safety measuring device

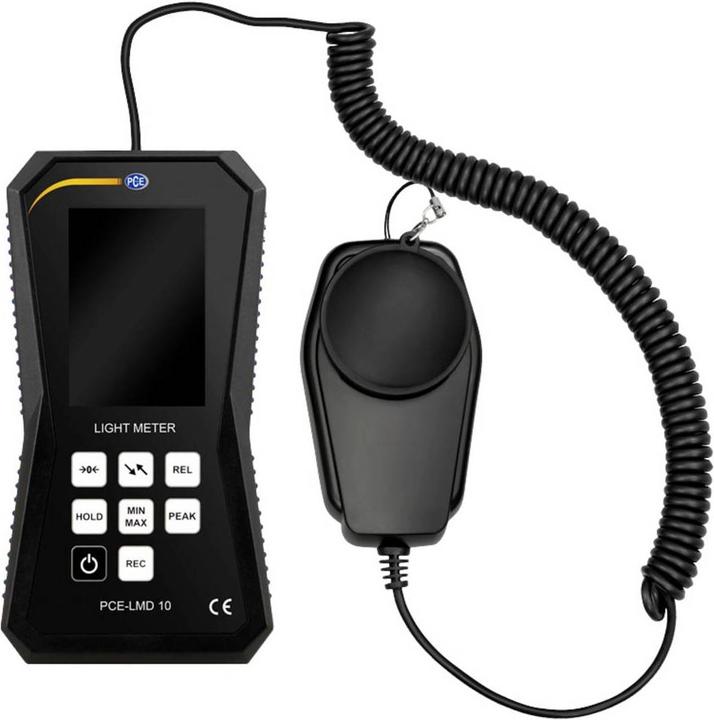

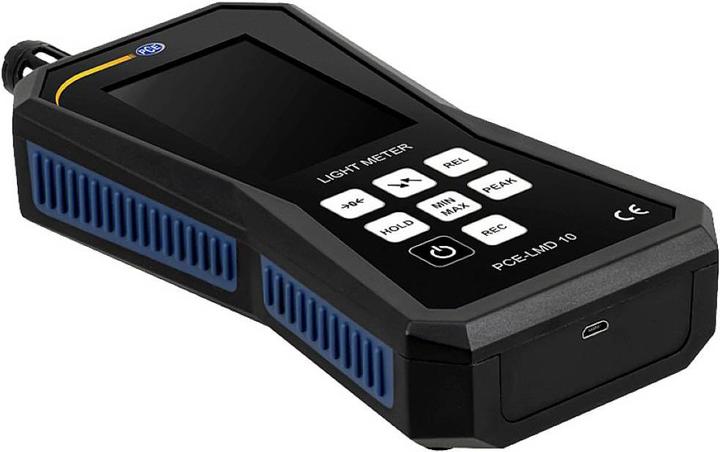

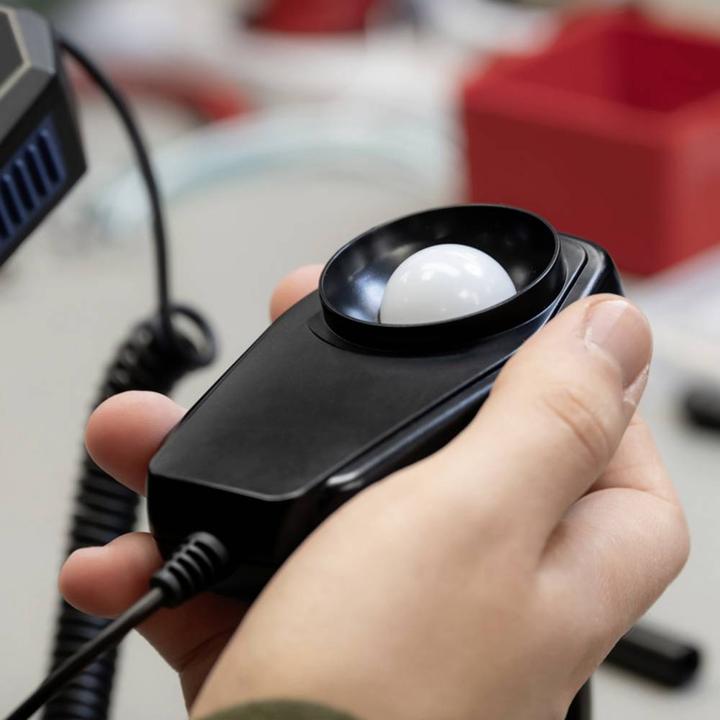

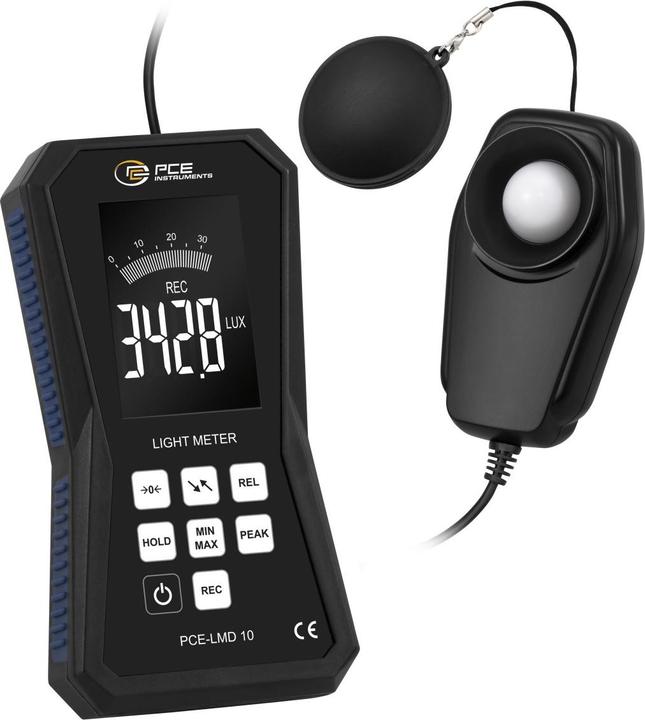

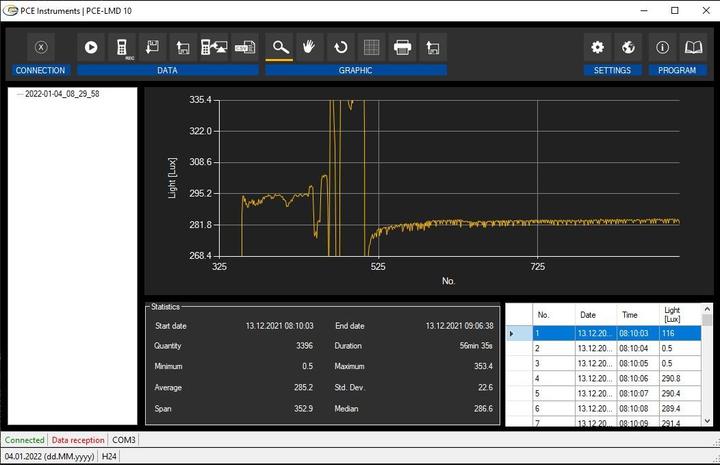

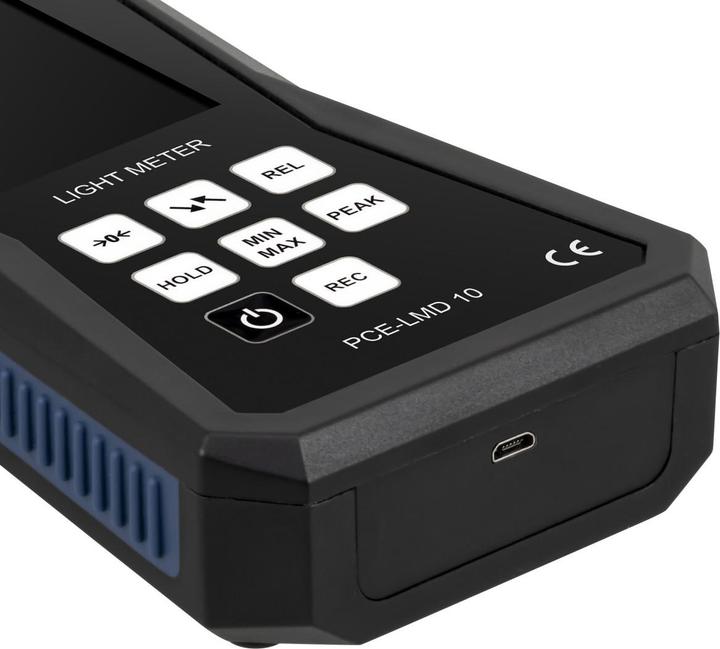

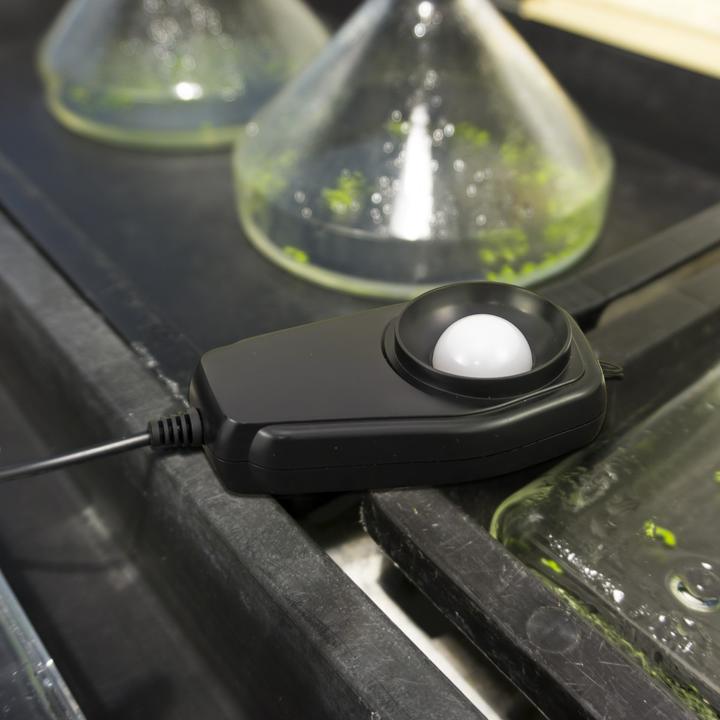

Occupational safety measuring device with external probe, sampling rate of 4 Hz, measurement range from 0 to 400 kLux, Micro-USB interface. Units: Lux, Footcandle, optionally with ISO calibration certificate. The occupational safety measuring device has a wide measurement range from 0 to 400 kLux. The illuminance is measured using an external silicon photodiode with a spectral filter. This allows the measuring device to be positioned appropriately for any measurement task. The measurement values can be displayed in Lux and Footcandle. In addition to the normal display of measurement values, the measurement is also output on a scale. To enable an analysis of the illuminance, the occupational safety measuring device has additional functions. With the "MIN" and "MAX" buttons, the highest and lowest measurement values can be displayed. Additionally, the "REL" button allows the displayed measurement value to be set in relation to a reference. The PEAK function enables the measuring device to capture peak values, with a sampling rate of 10 µs. The PCE-LMD 10 also features a data memory of 32,000 measurement values. The measurement values can be read and analyzed on a PC after a measurement. Live measurement on a PC is also possible. For further processing, the data can be exported in CSV format. The built-in 3.7 V Li-Ion battery can be recharged via a 5 V DC connection through the Micro-USB interface. Due to its measurement range and various functions, the occupational safety measuring device is used for monitoring lighting in greenhouses, at workplaces in production workshops, or in photo studios.
