Differential Pressure Manometer PCE-PDA 10L

The differential pressure manometer for relative and differential pressure is adaptable to a flow tube and features a MAX MIN function as well as a data logger. The differential pressure manometers of the PCE-PDA series are reliable devices for measuring gas pressure in the range of ±200 Pa, ±2 kPa, or 20 kPa, depending on the model.

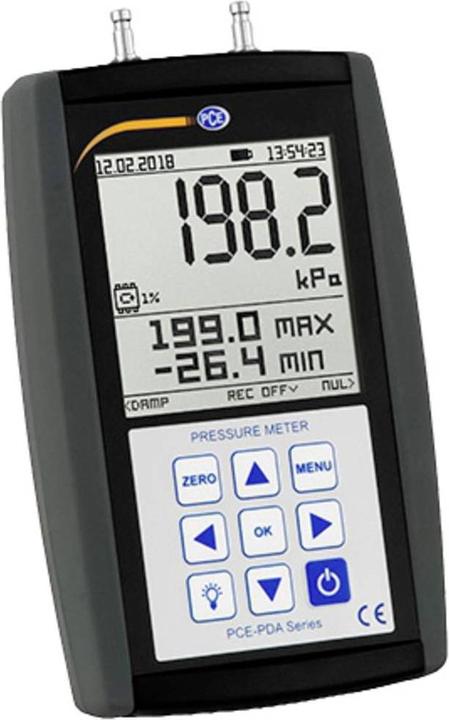

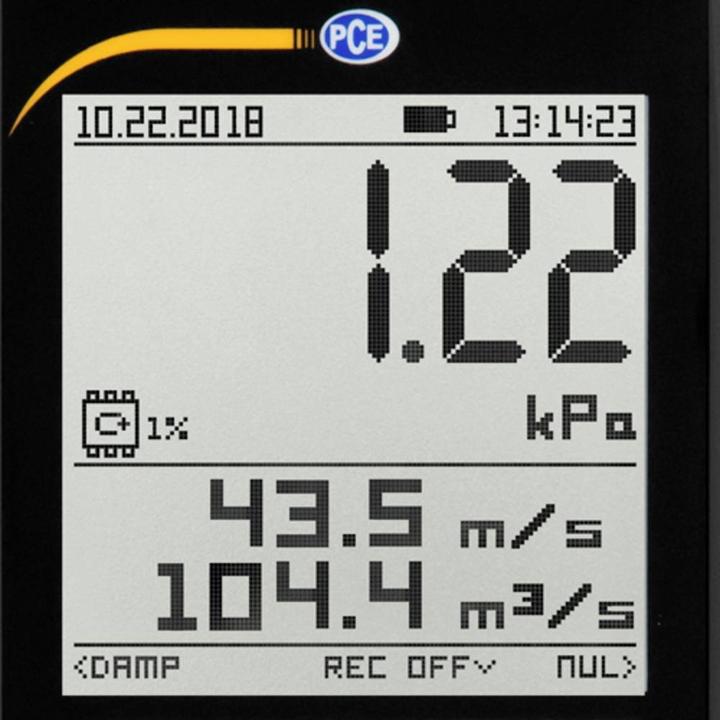

The differential pressure manometer offers numerous pressure measurement functions and provides the user with over 16 units. In addition to differential pressure, it also measures temperature, flow velocity, and volumetric flow rate. The two-part graphic display can show the maximum and minimum differential pressure. The resolution of the differential pressure can be switched as needed. A high-precision mode increases the resolution by ten times.

The PCE-PDA differential pressure manometer features a data logger function that allows for continuous storage of measurement values and enables leakage testing of pressure lines. In data logger mode, a duration can be set during which data is saved at a previously selected interval. In leakage measurement mode, the measurement duration and the differential pressure level must be specified by the user. After the measurement, the differential pressure measuring device displays the deviation from the set value.

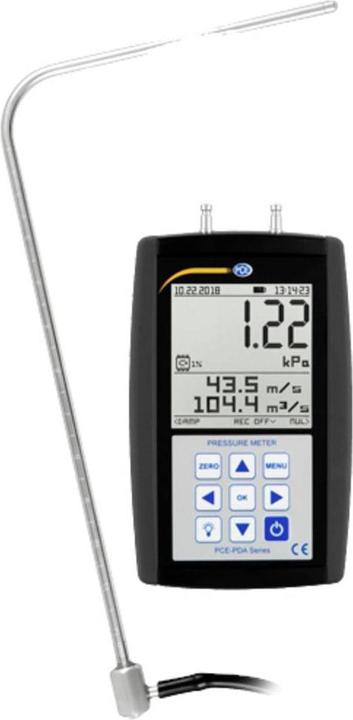

Additionally, the differential pressure measuring device can determine the flow velocity or volumetric flow rate in pipes when used with optionally available pilot flow tubes.
