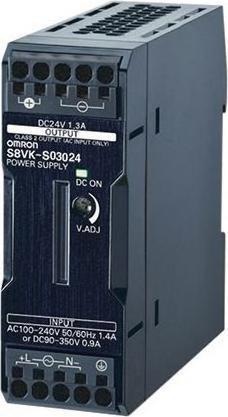

Omron Industrial Automation DIN Rail Power supply, 30 W, 24VDC, 1.3A

AC or DC input voltage: AC, DC
AC or DC output voltage: DC
Minimum input voltage: 85 V AC, 90 V DC
Output voltage: 24 V DC
Output current: 1.3 A
Rated power: 30 W
Number of outputs: 1
Electrical phases: 1
Type: Switch Mode
Dimensions: 32 x 91.2 x 90 mm
Width: 32 mm
Input frequency range: 47 - 450 Hz

UL508 / UL1310 (only 60 W), UL/EN/IEC 60950-1 and EN 50178, SEMI F47-0706, EN/IEC 61558-2-16. Switch mode power supply of the S8VK-S series. The S8VK-S series of single-phase switch mode power supplies from Omron is the perfect solution for small control panels. With easy-to-wire Push-In Plus technology, wiring time can be significantly reduced by up to 60%. Simply push the wires in by hand, and they are more secure than using a regular screw terminal block. The S-type unit has a robust design and is coated for protection against harsh environments.

Features and benefits:

• Operable in ambient temperatures from -40 °C to 70 °C
• Supports DC input (90 V DC to 350 V DC)
• Power boosting function at 120%
• Horizontal mounting side by side
• Vibration resistance up to 5 G and supports 300 V AC abnormal input voltage for 1 second
• The PCB coating protects against dust, corrosive gas, and moisture
• Certification for 3000 m altitude
• CE marking

Product application information: The S8VK-S power supply for DIN rail mounting is ideal for use in most environments. This power supply can be used in locations with poor power quality, high humidity, and corrosive gases. With quick installation due to the Push-In Plus technology and space-saving size, these power supplies can be used in most industrial sectors.
