Offgridtec © Wall-mast mounting set aluminium for 20W to 50W modules

With the Offgridtec Wall-Mast 20-50 Mount, you can quickly attach solar panels in the power range of 20 to 50 watts to a wall or a mast – both options are feasible with this set.

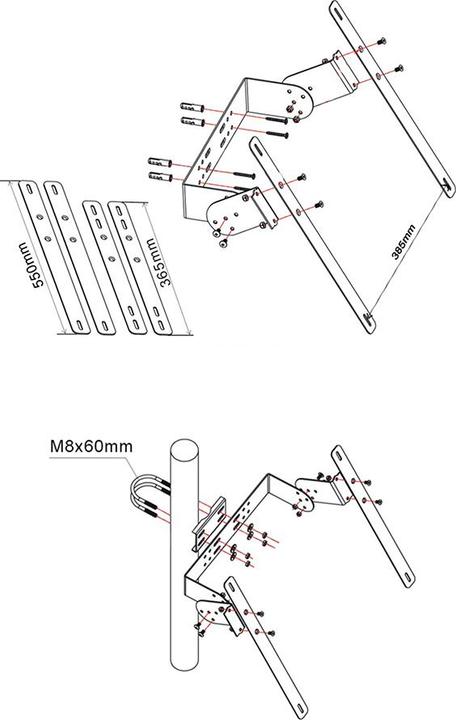

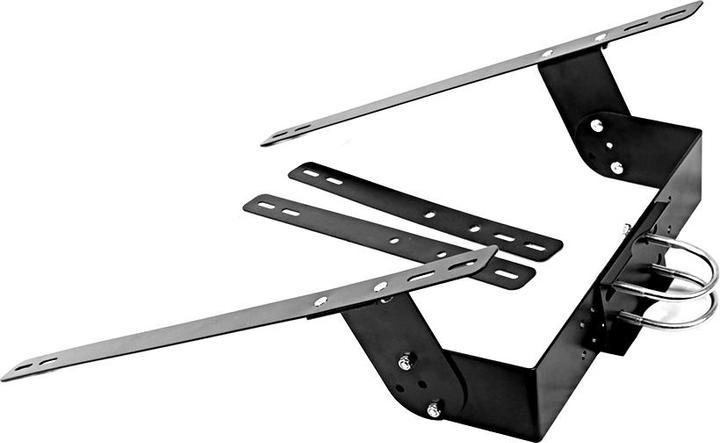

The set includes a pair of mast clamps with matching nuts and washers, an adapter plate for mast mounting, and the actual base module holder, which can also be directly attached to a brick or concrete wall using the included screws and dowels. Corresponding elongated holes are already present on the back of the module holder. Additionally, the set contains two different adapter strips that allow you to attach modules from 20W to 50W to the base.

The mount is made of black anodized metal, and only first-rate materials have been used for the screws and nuts. The mount will securely position your solar module for many years – ideal for autonomous installations where maintenance is rarely possible.

Installation note: Please be aware that you may need to drill two holes in the frame of your solar module to screw the module to the mount. This depends entirely on the type of solar module and the factory-drilled holes. If you need to drill into the frame, we definitely recommend using a depth stop while drilling to avoid damaging the back of the solar module.

Mast diameter: 60mm.

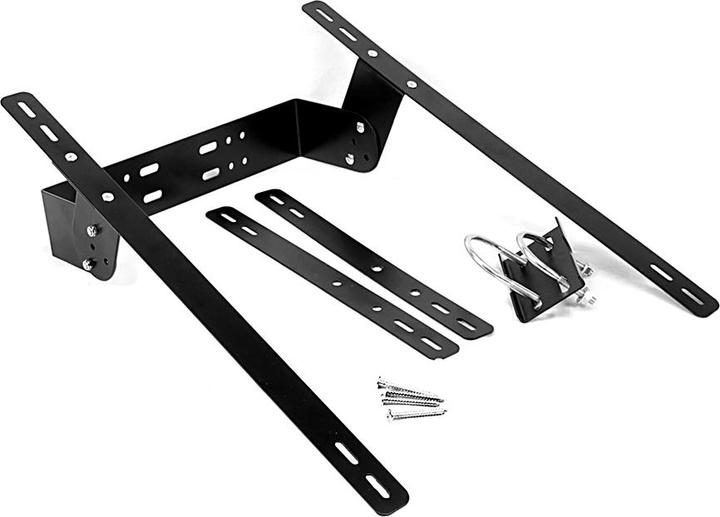

Delivery includes:

• Mast adapter including corresponding screws for mast mounting
• Base mount for wall installation
• Galvanized wing nuts, spring rings, and washers, as well as 4 pieces of 6x16mm nuts for module attachment to the base mount
• 4 pieces of 6x40mm screws + dowels for fastening in masonry
• Mast diameter: 60mm.
