Offgridtec Voltage monitoring 12V

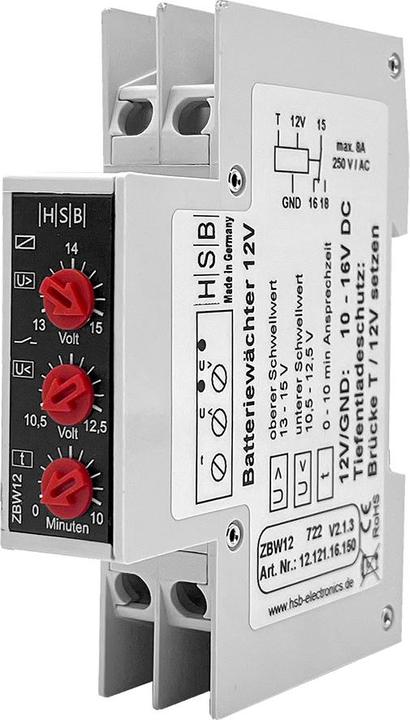

The voltage measuring relay monitors the DC voltage applied to terminals A1 and A2.

Application:
Deep discharge protection and overcharge protection for AGM, GEL, and flooded batteries.

The relay activates when the voltage to be measured falls below the set value V< (battery is empty) and the configured delay time of 0-10 minutes has elapsed. This condition is indicated by the yellow LED lighting up. The relay returns to its resting position as soon as the monitored voltage exceeds the set value V> (end-of-charge voltage).

Supply voltage: 10 - 15.5 VDC
Power consumption: 0.8 watts
Operating mode: Continuous operation
Measurement accuracy: 2% across the entire temperature and voltage range
Repeat accuracy: +/- 2%

Measurement range:
Under-voltage: 10.5 - 12.5 V
Over-voltage: 13 - 15 V
Hysteresis: 1 V

Contact:
Number of changeover contacts: 1
Contact material: AgSnO2
Maximum switching voltage: 250 V AC
Maximum switching current: 8 A
Maximum switching power: 2000 VA
Maximum inrush current: 30 A.
