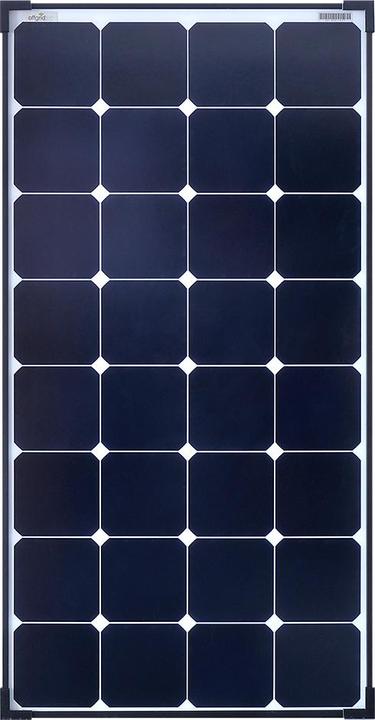

Offgridtec OFF 3-01-001520 - Solar panel, SPR-100, 12 V, 110 W

Monocrystalline 120W / 12V high-end solar panel with rear-contacted high-power solar cells from the American manufacturer Sunpower - currently the best available, with an efficiency of over 24%. Here, the world's best solar cells meet the new back-contact technology. The result is a high-end product at a solid price. Additionally, we have paid special attention during the production of this series to ensure that the rest of the module does justice to the valuable cells. This panel is significantly lighter and smaller in area than conventional solar cells with the same output. The light yield under poorer conditions is also higher in the SP series compared to our standard mono series.

Key Features

• Cell efficiency of over 24%
• Lighter and smaller than other mono modules with the same output
• Monocrystalline high-power solar cells (made in the USA)
• Very good yield even in lower light conditions
• Rear-contacted (back-contact, only the pure cells are visible on the front side)
• Black aluminum frame
• Extremely durable
• Ideal for motorhomes, boats/yachts, and small spaces
• Elegant appearance

In the production of our modules, only monocrystalline SunPower solar cells of the highest quality are used. Unlike conventional solar modules, the cells are interconnected on the back (back-contact), which increases cell efficiency and provides an elegant appearance.

The module has a black aluminum frame and features specially tempered ESG solar glass.

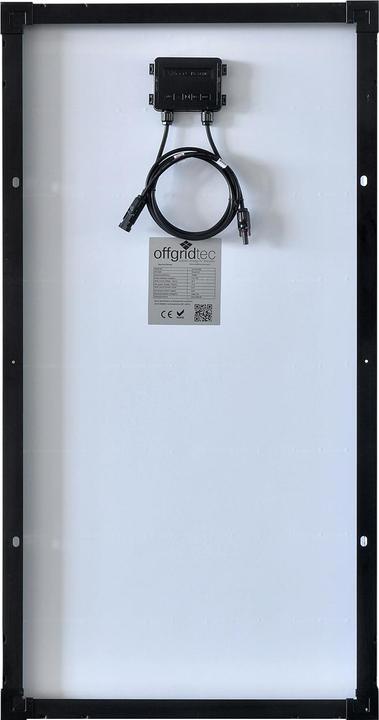

The connection cables are 80 cm long and equipped with MC4 connectors.

Technical Data

Power (Pmax): 120W
Voltage (Vmp): 19.8V
Max. Current (Imp): 6.05A
Open Circuit Voltage (Voc): 23.35V
Short Circuit Current (Isc): 6.41A
Max. System Voltage: 600 V/DC
Ambient Temperature: -40...+85°C
Dimensions: 540 x 1055 x 35 mm
Weight: 7.5 kg.
