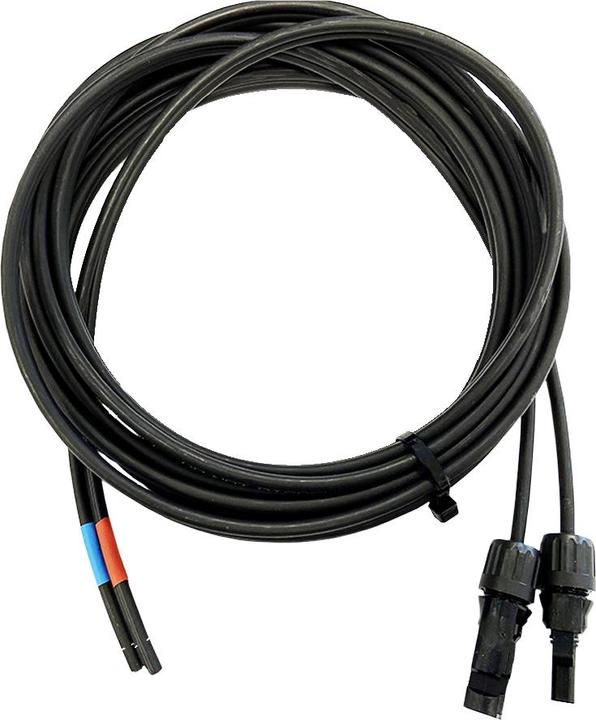

Offgridtec 5m 4mm² professional connection cable solar module to solar charge controller

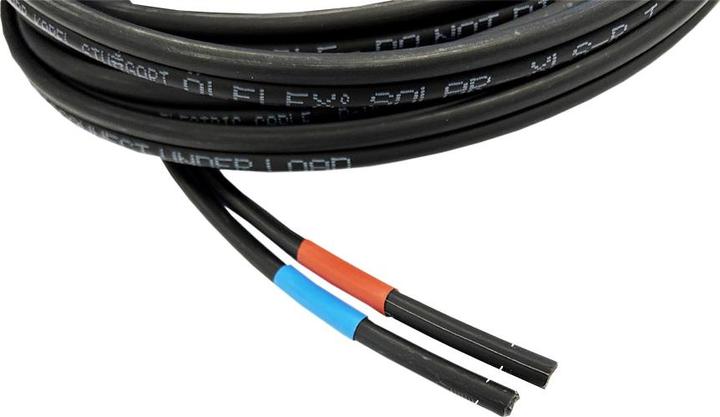

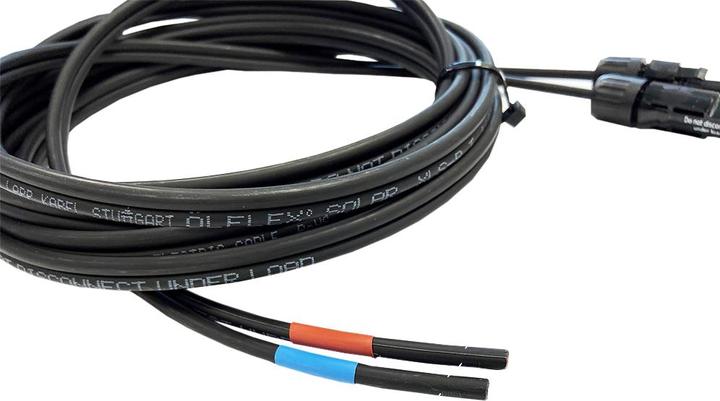

This 2-wire solar cable professionally connects the solar charge controller to the solar panels in a solar system. On the module side, the cable features original Multi-Contact MC4 connectors, and on the charge controller side, the cable ends are cut for easy stripping of the insulation and exposing the bare wire.

The cable can be connected to any charge controller with the appropriate connection (minimum 4mm²). Most 12V modules come with MC-4 connectors. If your module has different connectors, you can find the suitable adapters in our shop.

Due to the cross-section, cables with 4mm² from a length of 5m are only suitable for 24V systems and above. For 12V, you should use at least 6mm².

All components have been crimped with professional tools and provide optimal connection quality. The manufacturing of the cable takes place in our factory in Lower Bavaria.

Features of the solar cable

• 4mm conductor cross-section
• double insulated
• very flexible
• VDE 0295 class 5 and IEC 6022
• resistant to: UV, ozone, weather, water
• highly resistant to chemicals and oil
• fire resistant according to VDE 0482-332-2, DIN

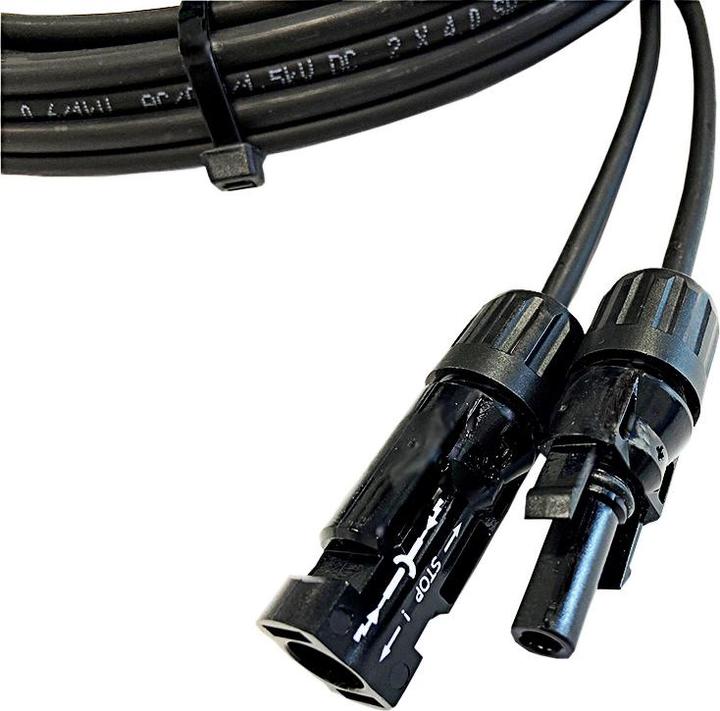

Features of MC-4 connector & socket

• Touch protection, unconnected IP2X
• Protection class, connected IP67
• Temperature range -40° ...90° C
• Insulation material PA
• Locking system Snap-in
• Cable strain relief according to IEC 61984
• Contact system MC contact blades
• Contact material copper, tinned
• Flame class UL94-V0
• Protection class II
• System voltage up to 1000V.
