OBO Bettermann Potential equalization rail

2Ratings
BrandMore from OBO Bettermann
Delivered between Fri, 17.4. and Thu, 23.4.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

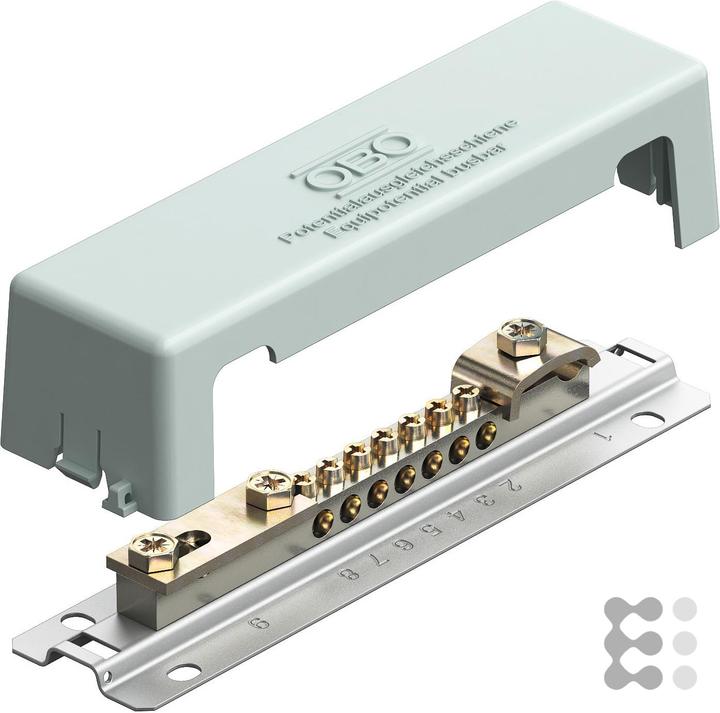

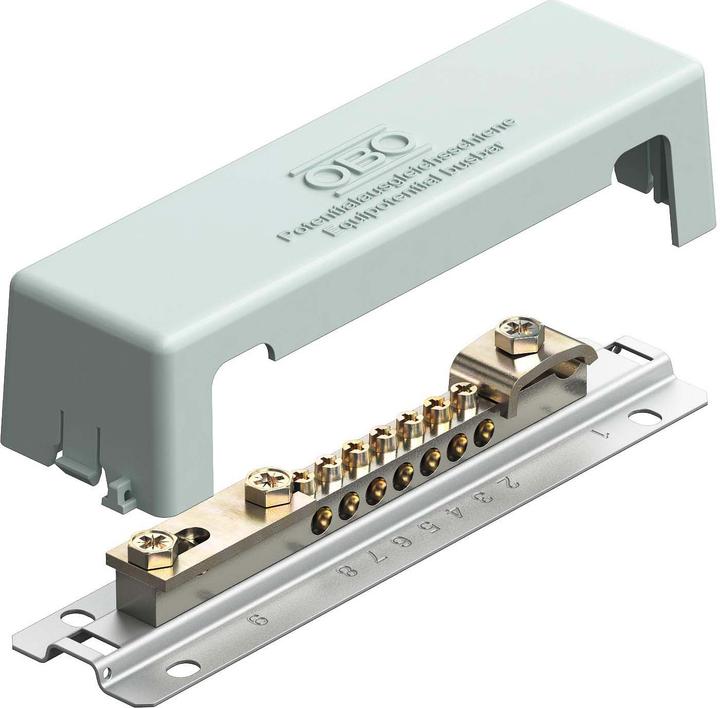

OBO Bettermann potential equalization bar 1809 M Manufacturer: OBO Bettermann Designation: Potential equalization bar.Type old: 1830 Type: 1809 M Design: fixed design Version: with cover Insulator: no Height: 43 mm Width: 52 mm Length: 188 mm Number of connections Round conductor total: 1 Number of connections Round conductor 8-10 mm: 1 Number of connections Flat conductor up to 30 mm: 1 Number of connections Cable up to 25 mm² rigid: 7 Material of contact rail: Brass Surface of contact rail: Nickel-plated Material of terminal: Steel Surface of terminal: Galvanized/electrolytically zinc-platedOBO Bettermann Potential equalisation rail 1809 M: more detailsrail 1809 M: more detailsEquipotential bonding rail with metal base for equipotential bonding according to DIN VDE 0100-410/-540 as well as lightning protection equipotential bonding according to DIN VDE 0185-305. Cover made of polystyrene, gray, cover can be lead-sealed / labeled, base plate made of steel, strip galvanized, contact bar made of brass, nickel-plated, screws and overlays made of steel, electrolytically galvanized, lightning current carrying capacity 50 kA (10/350). Connection possibilities: 7 solid or stranded conductors up to 25 mm² or fine stranded conductors up to 16 mm², 1 round conductor Rd 8-10, 1 flat conductor up to FL 30 or round conductor Rd 8-10. , EAN: 4012195378310

Key specifications

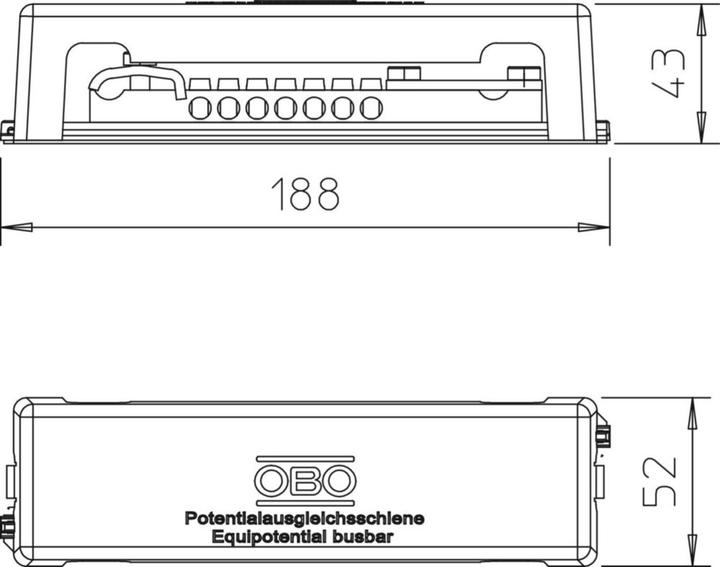

Length
188 mm
Width
52 mm
Height
43 mm

General information

Item number
17933035
Manufacturer
OBO Bettermann
Category
Wiring closet technology
Manufacturer no.
5015081
Release date
15.12.2021

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Metal
Material
Brass, Steel

Distribution cabinet technology Features

Area of use
Inside

Smart home features

Configuration effort
Manual configuration

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
28.69 kg
Climate contribution
CHF 0.68

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
188 mm
Width
52 mm
Height
43 mm
Depth
52 mm

Package dimensions

Length
20 cm
Width
6 cm
Height
5 cm
Weight
250 g
