Norgren ISO cylinder Ø 10 mm

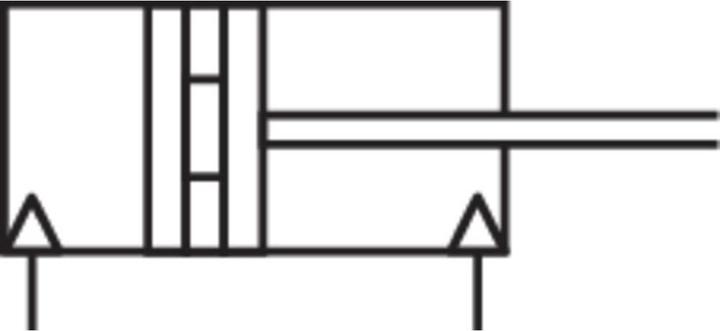

ISO cylinder Ø 10 mm. Technical data: Mounting thread: M12 x 1.25 - Operating pressure (max.): 10 bar - Operating pressure (min.): 1 bar - Seal material: Polyurethane, Nitrile rubber - Compressed air connection: M5 - Unit temperature min.: -10 °C - Product part number: RM/8010/M/25 - Stroke length: 25 mm - Piston rod material: Stainless steel - Piston rod Ø: 4 mm - Piston rod thread: M4 - Medium (valves): Filtered and lubricated compressed air, Filtered and unlubricated compressed air - Product type: Round cylinder - Product dimension, Ø: 10 mm - Swivel bore Ø: 4 mm - Ambient temperature (max.): +80 °C - Ambient temperature (min.): -10 °C - Mode of operation: Double-acting ISO cylinder. Note: At temperatures below +2 °C please observe air conditions.
