No Name Satel Motherboard Perfecta-Ip 32

The Perfecta-IP alarm control panels are designed to protect small and medium-sized premises such as apartments, single-family houses, segments in terraced houses, offices, and small businesses. They provide protection as required by EN 50131 for Grade 2. The control panels are characterized by simple configuration and easy, intuitive operation using keypads. The alarm system can also be controlled remotely using the Perfecta Control mobile application and keyfobs operating in the 433 MHz frequency band (with the INT-RX-S module connected).

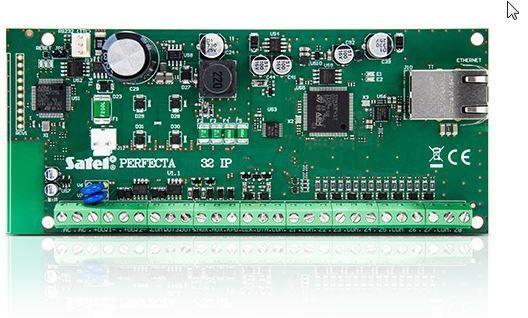

An Ethernet communicator is used in the Perfecta-IP 32 model. It enables the use of a mobile application with push notification capability, remote system configuration from the Perfecta Soft program, and event reporting (e.g., to a security agency monitoring station). The control panel electronics board is equipped with 8 hardwired zones and 4 hardwired outputs. Their number can be increased by connecting the INT-E zone expansion modules and INT-O or INT-ORS output expansion modules. This allows for the expansion of the system by adding more detectors, sirens, or actuators (to control the garage door, roller shutters/blinds, or garden sprinklers).

The control panel enables the system to be divided into two partitions with three arming modes (day, night, full) to choose from. Each zone can be assigned to one or both supervised areas.

The system can be configured in two ways: from a computer with the Perfecta Soft program installed (locally via RS-232 (TTL) port, or remotely using data transmission over Ethernet), as well as from a keypad, using key sequences in the service menu.
